Automatic Power Switch KS ATS 4/100HD-O
Automatic Power Switch KS ATS 4/100HD-O
Regular price
€0,00 EUR
Regular price
Sale price
€0,00 EUR
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Features

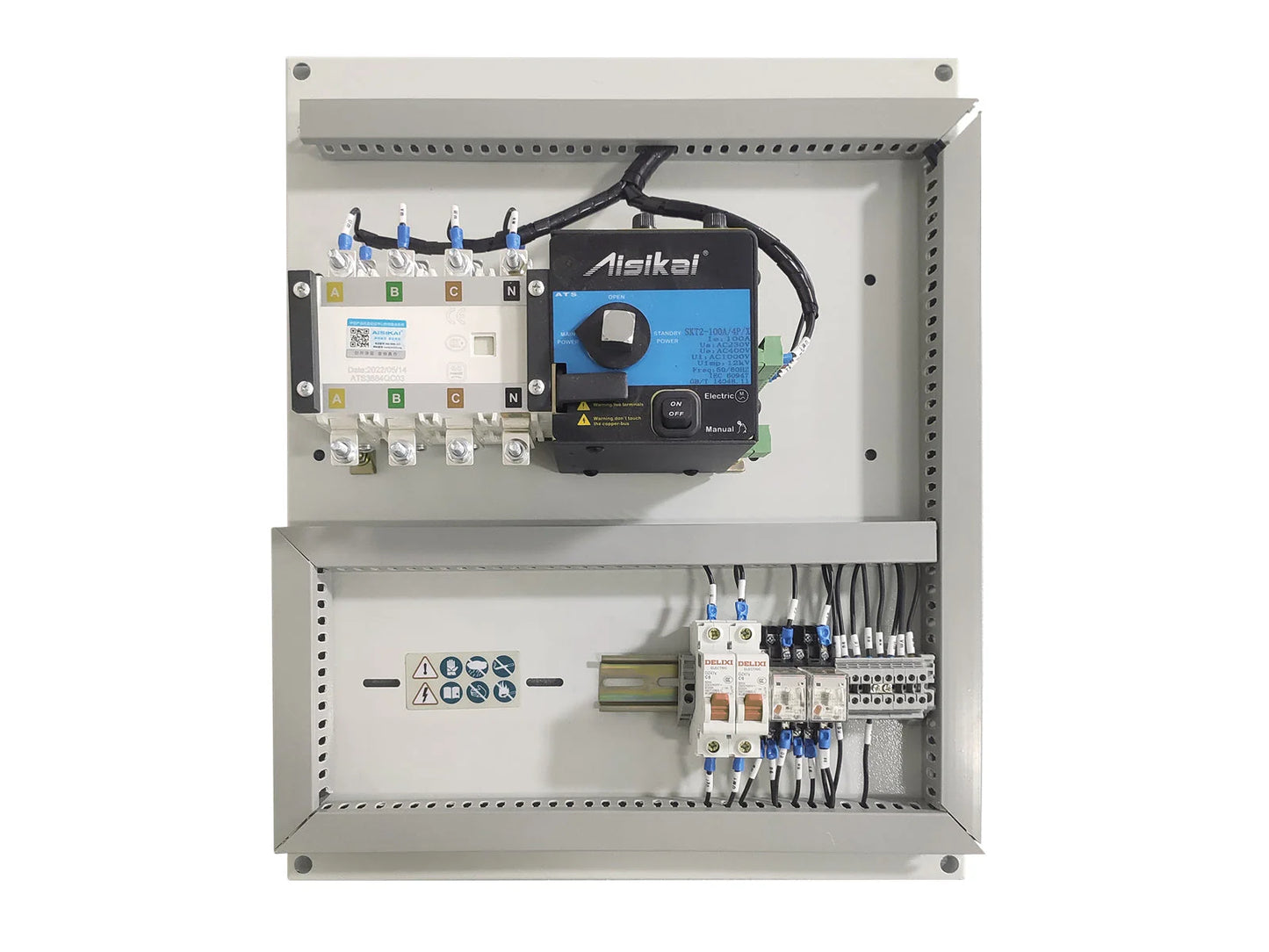

The KS ATS 4/100HD-O ATS unit (Automatic Transfer Switch) from the German brand “Könner & Söhnen” automatically starts the power station and transfers load to it when the main power source is turned off and automatically stops the power station when the central power supply is restored. It is compatible with Könner & Söhnen diesel power stations. The ATS unit can operate both in automatic and in manual mode.
PROGRAMMABLE LOGIC CONTROLLER OF THE ATS UNIT:
- Universal design allows ATS unit connection to single- and three-phase networks
- Automatic/manual operation
- Motor-operated switch
- Terminal block for control cables
Peak power demand, W 18 Power (230V), kW 23 Current (max) 230 V, A 100 Power 400V, kW 55 Current (max) 400 V, A 100 Working environment from -20 to + 45 °С; humidity: ⩽50% Storage environment from -30°C to +70°C; humidity: ⩽50% Insulation class AC1.0KV/1min 1mA Voltage, V 230/400 IP protection class IP44 Net dimensions (LxWxH), mm 515x415x150 Net weight, kg 5 Gross weight, kg 5.0 SKU KS ATS 4/100HD-O Barcode 4260405365937
