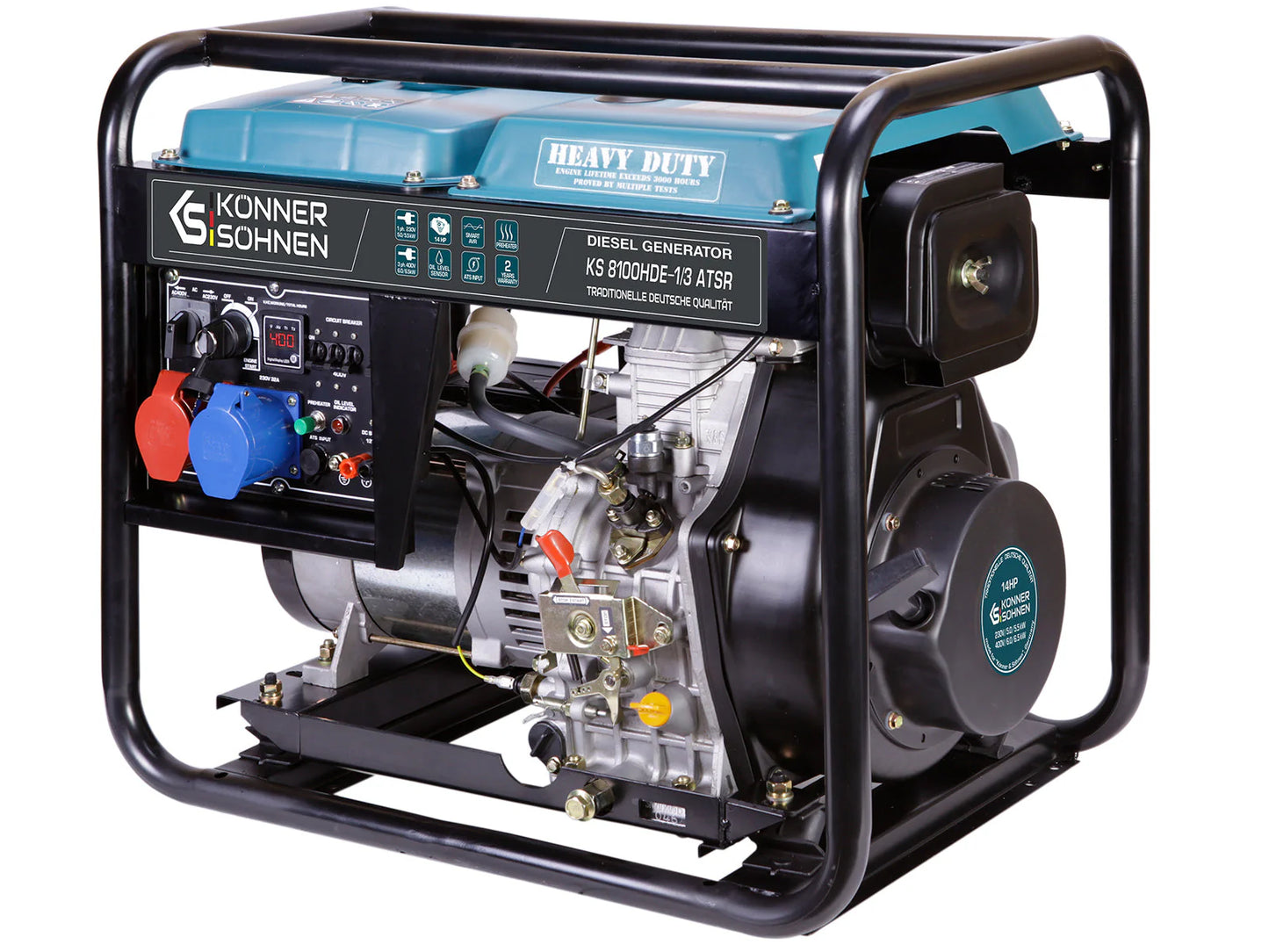

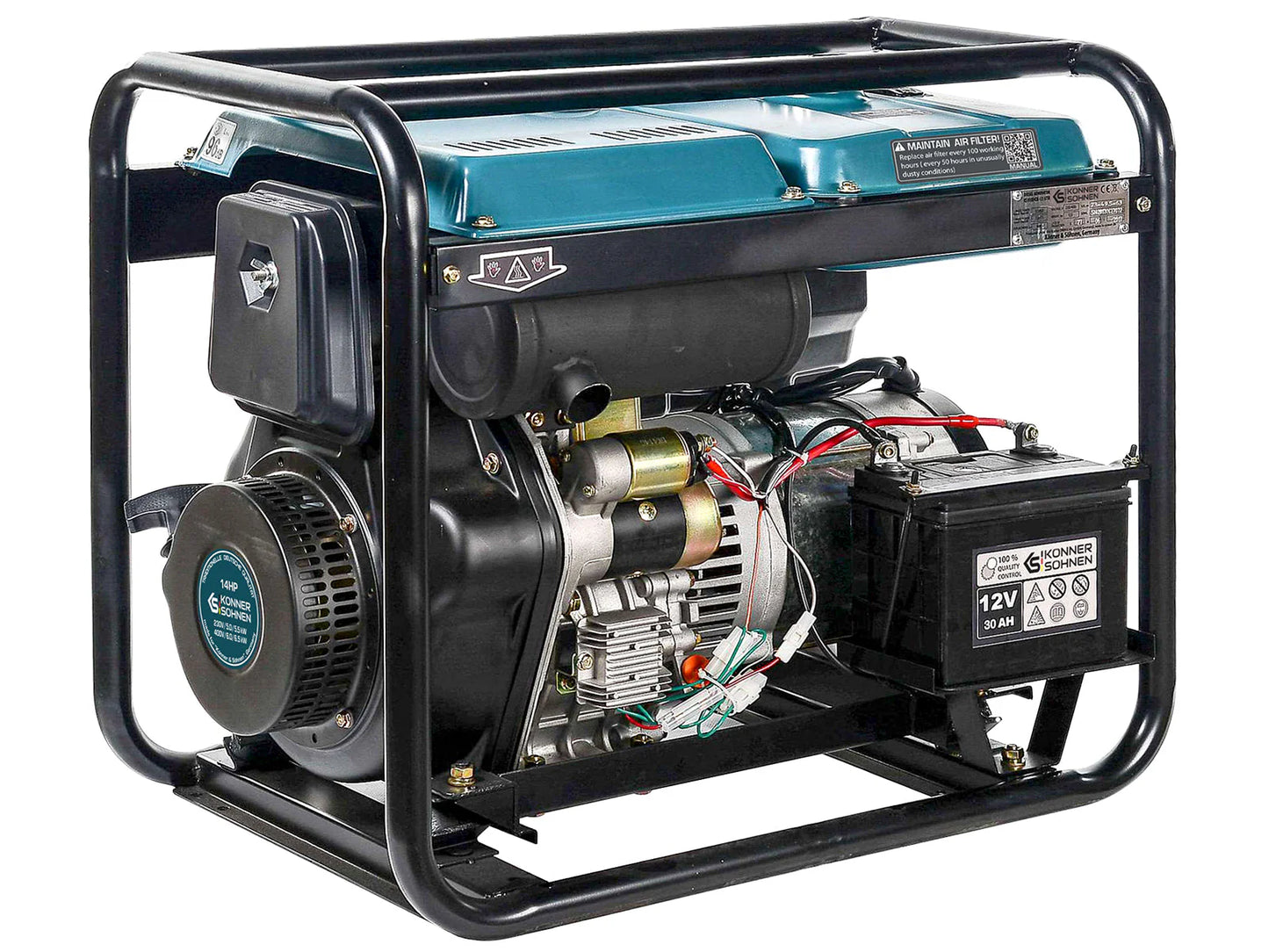

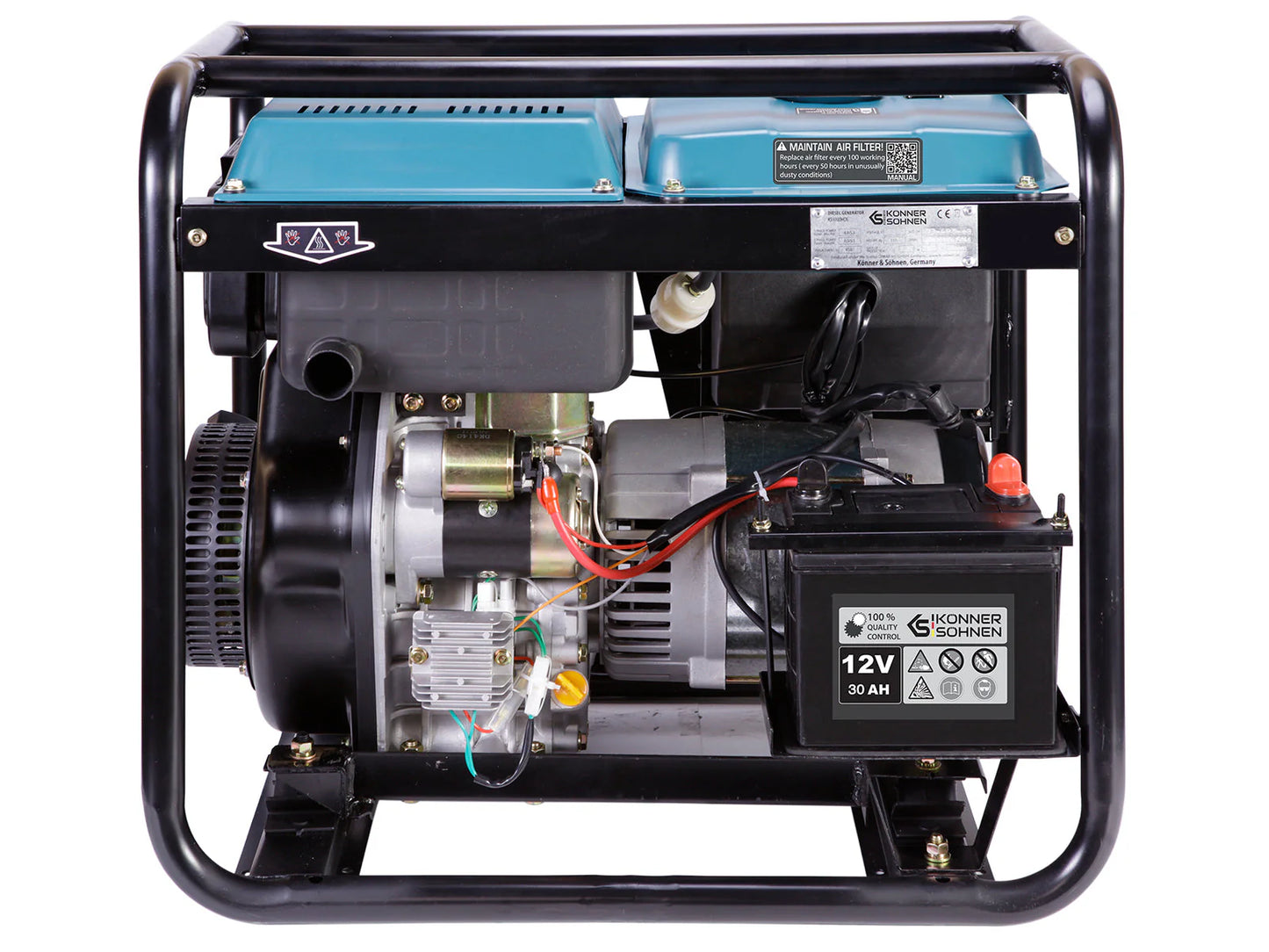

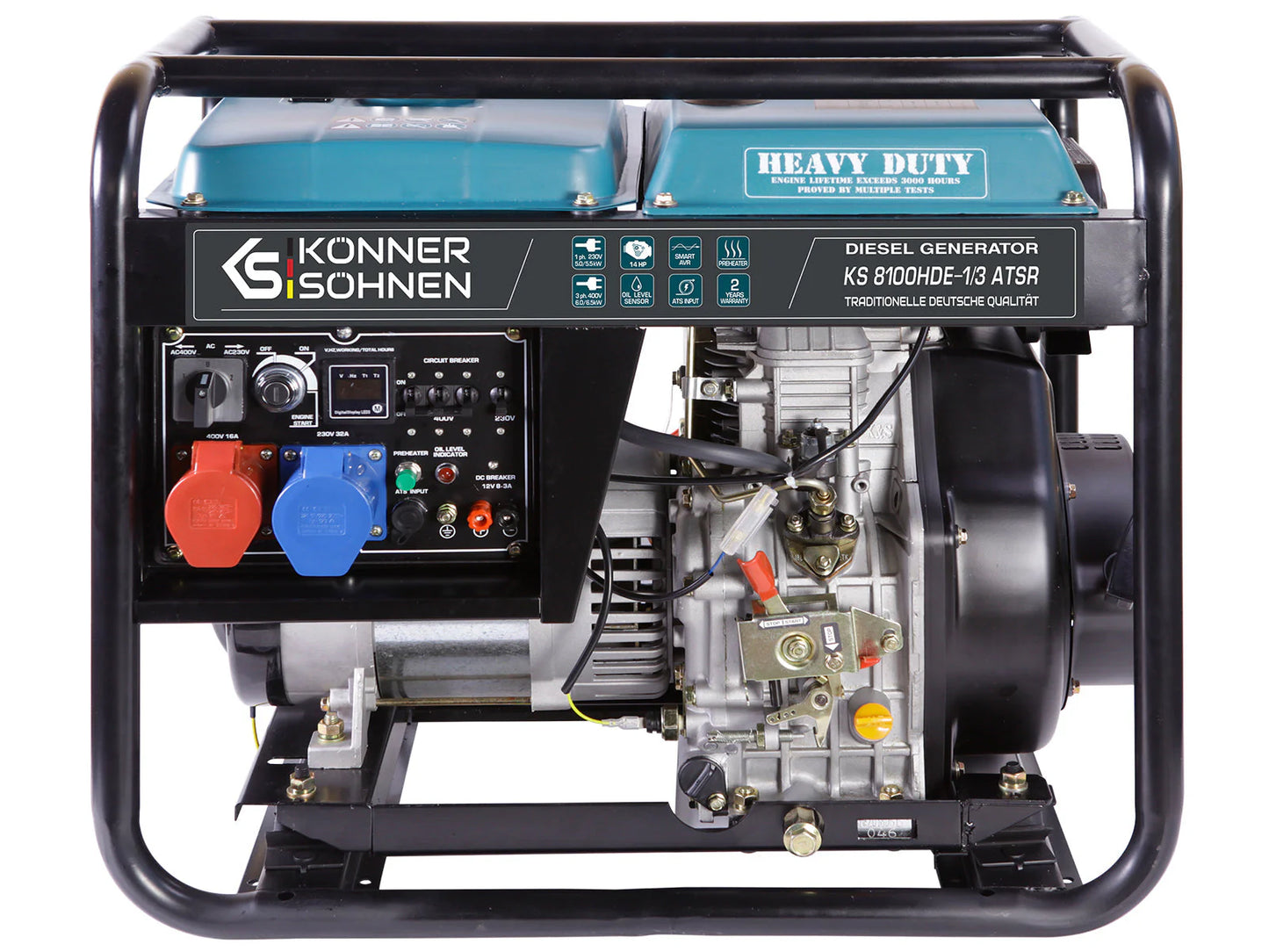

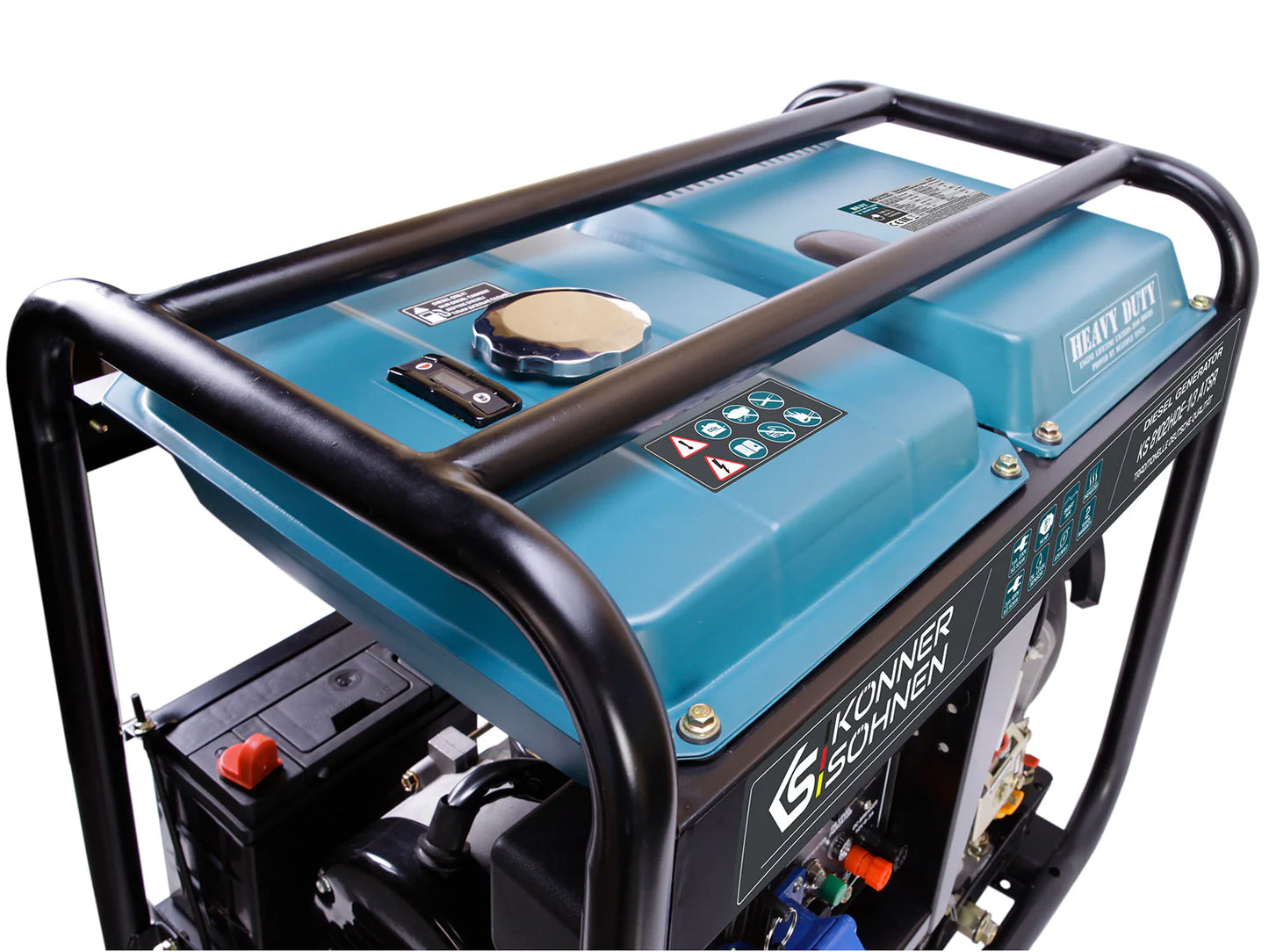

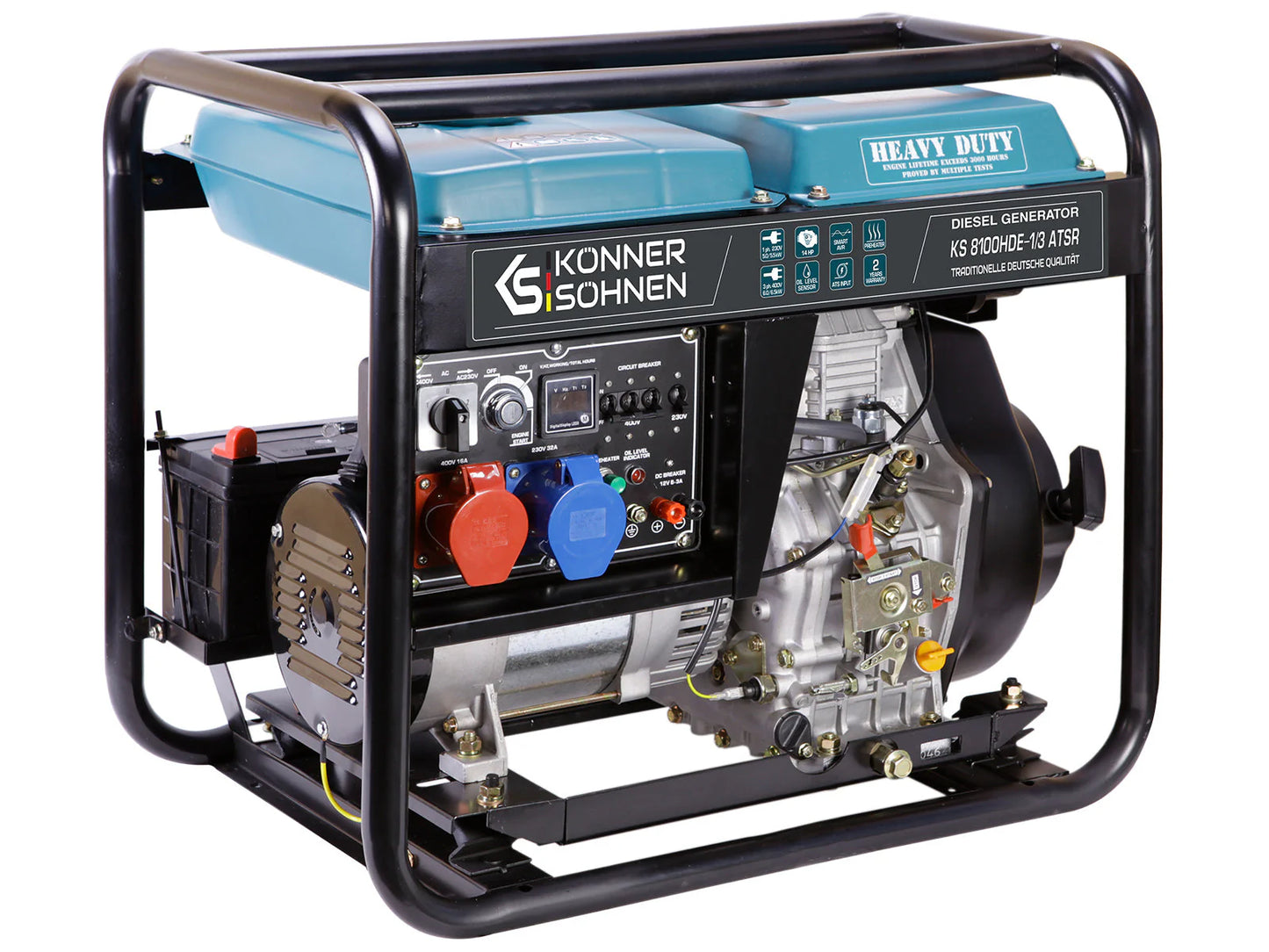

Diesel generator KS 8100HDE-1/3 ATSR (EURO V)

Diesel generator KS 8100HDE-1/3 ATSR (EURO V)

€1.394,00 EUR
€1.394,00 EUR €1.394,00 EUR
Sale Sold out
Taxes included.

Benefits

  • The engine can run up to 3000 hours, which is much more than most other generators.
  • Before starting the generator, the pre-heating function is activated, allowing for a faster start.
  • The intelligent AVR system ensures that
  • Intuitive buttons on the control panel make operating the generator simple and straightforward, and connected devices will operate without the risk of damage.
  • Long service life: thanks to their resistance to damage, generators with reinforced frames have a longer service life

    Company engines

    Engines for diesel generators, as well as for petrol devices, are manufactured under license from DIMAX Int. GmbH and marked with a logo embossed in metal. In all models, the engine power reserve in relation to the alternator allows to issue the declared voltage and maintain stability in the full voltage range. All engines are tested for long continuous operation, then dismantled and examined for detection and removal of faults. Each engine and each generator has an individual serial number, which allows us to control the quality of production and service. The engines meet all international and European standards of quality, economy and ecology, including the latest EURO V emission standard.

    Innovative phase change system vts

    Universal 2 in 1 generators – with a unique phase switching system VTS (Voltage Transfer Switch), which allows you to use one generator as a single (230V) and three-phase (400V) with virtually no loss of power. Each mode has its own automatic protection.

    Possibility of connecting ats

    The generator has the option of connecting the ATS system (automatic reserve switching). The ATS input has a 6-pin socket, which does not limit the choice of the reserve switching system.

    Increased engine life

    Heavy DUTY series generators are suitable for use not only as a backup power source, but also for long-term operation. The service life of the engines exceeds 3,000 operating hours, which is confirmed by multi-level and multi-hour tests and a guarantee. It is obvious that the engines have such high efficiency indicators with proper operation and required maintenance.

    Pre-start heating (Preheater)

    HEAVY DUTY series generators are equipped with a pre-start heating function (preheater), thanks to which you can start the generator in the winter season without unnecessary effort.

    Avr

    Könner & Söhnen generators from the HEAVY DUTY series are equipped with an intelligent AVR voltage stabilization system. It allows the generator output voltage to be maintained at a constant level of 230V and protects it against short circuit and overload.
    Voltage, V 230/400
    Max/Nom Power (230V), kW 5.5/5.0
    Max/Nom Power (400V), kW 6.5/6.0
    Frequency, Hz 50**
    Current 230V/400V (max), A 23.04/11.74
    Nests 1 x CEE 230V 32A, 1 x CEE 400V 16A
    Operating time at 50% load, h*** 6.9
    led display Voltage, frequency, operating hours counter
    Noise level Lpa/Lwa, dB 71/96
    12V outlet, A 12/8.3
    Engine type Diesel 1-cylinder, 4-stroke, air-cooled
    Engine model KS 480HD-V
    Output power, HP/kW 14.0/10.3
    Preheating +
    Fuel tank capacity, l 11
    Oil tank capacity, l 1.65
    Engine capacity, cm3 456
    Voltage regulator Intelligent AVR system
    Trigger type Manual/Electro
    Frame diameter 32
    Battery, Ah 30
    ATS input +
    Degree of protection IP23M
    Net dimensions (LxWxH), mm 730×495×630
    Gross dimensions (LxWxH), mm 750×550×670
    Net weight, kg 117
    Gross weight, kg 125.0
    SKU KS 8100HDE-1/3 ATSR
    Barcode 4260405362202

    **In transient modes, the generator frequency may change in a short period, i.e. during normal generator operation, a deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency may be 49-54Hz.

    ***Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.
