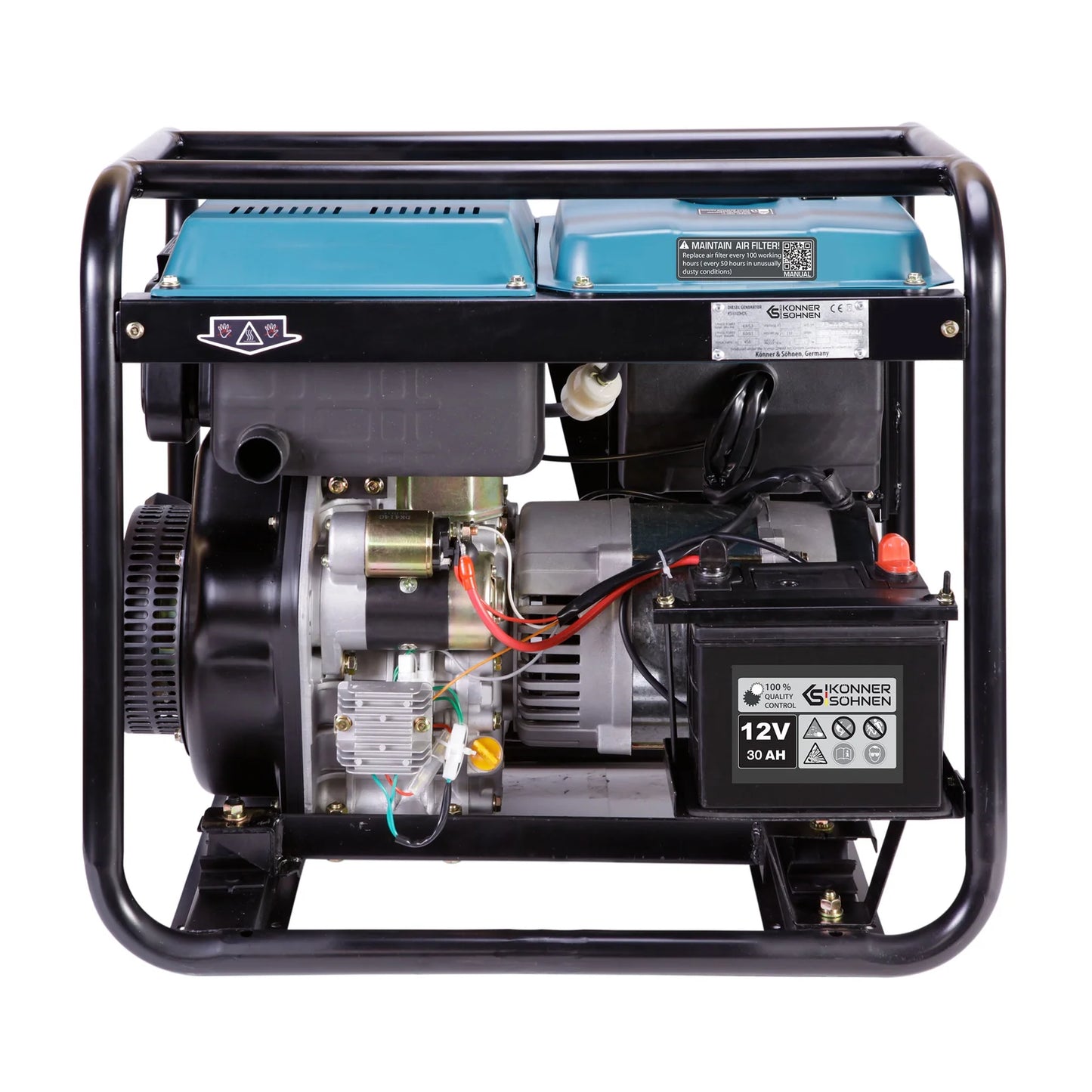

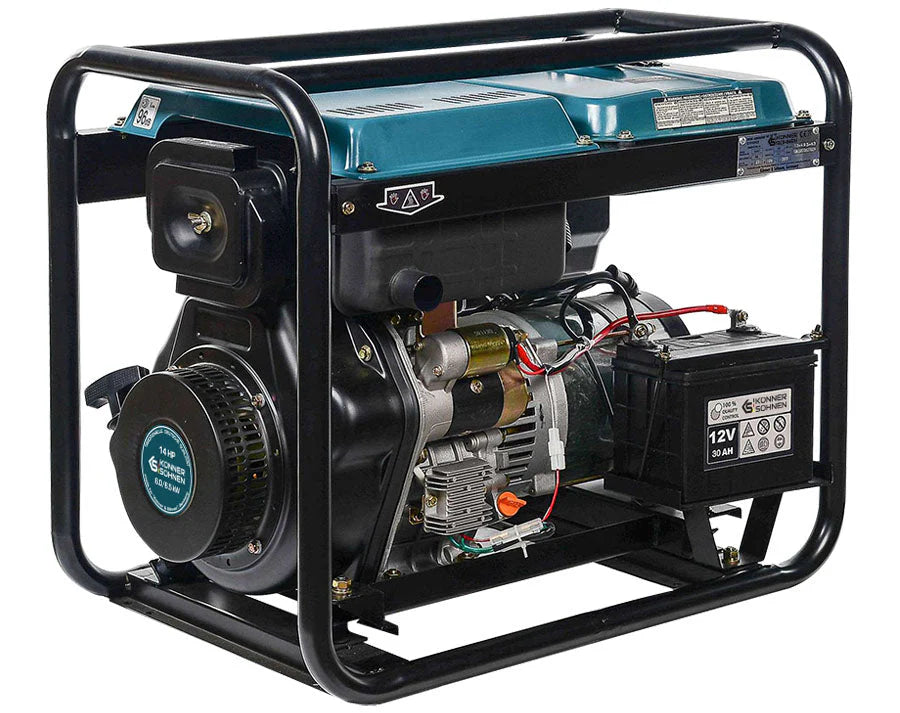

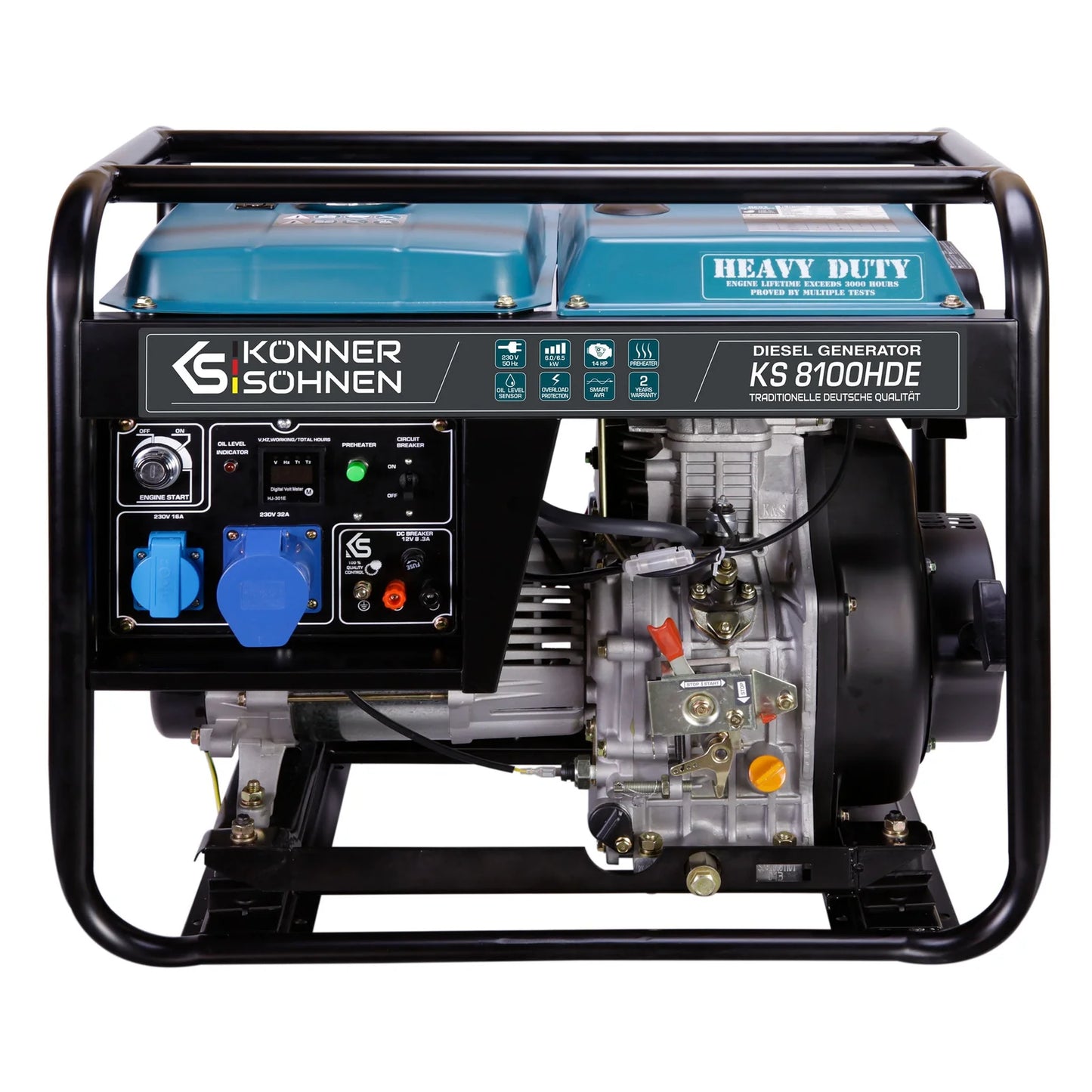

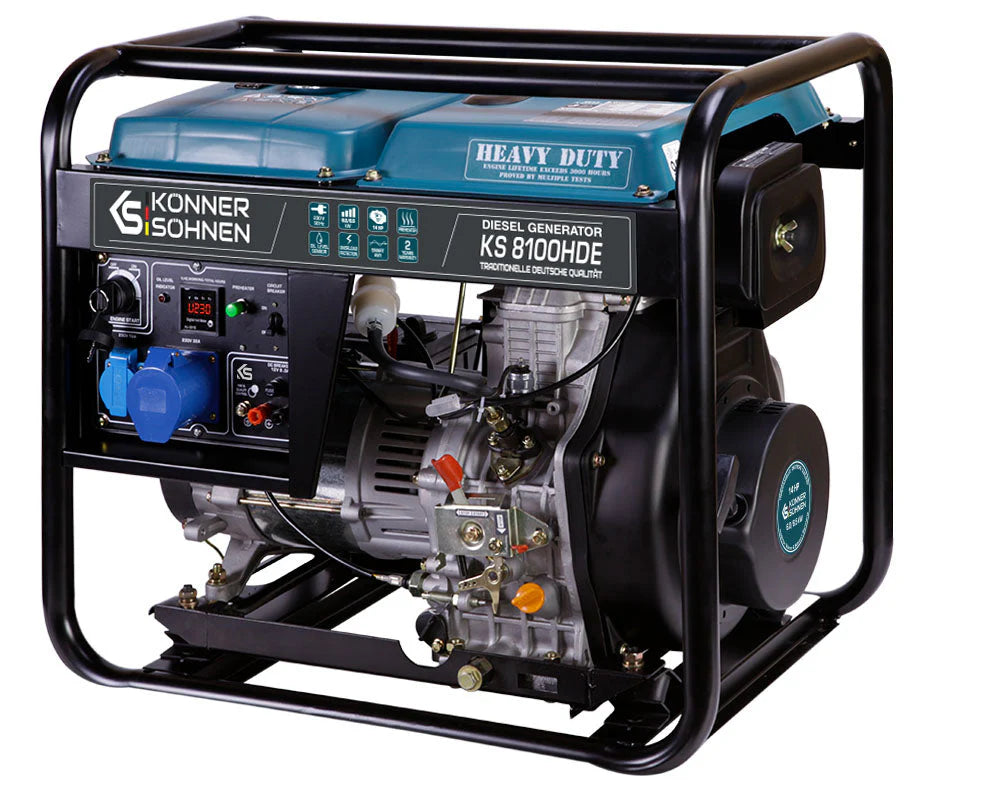

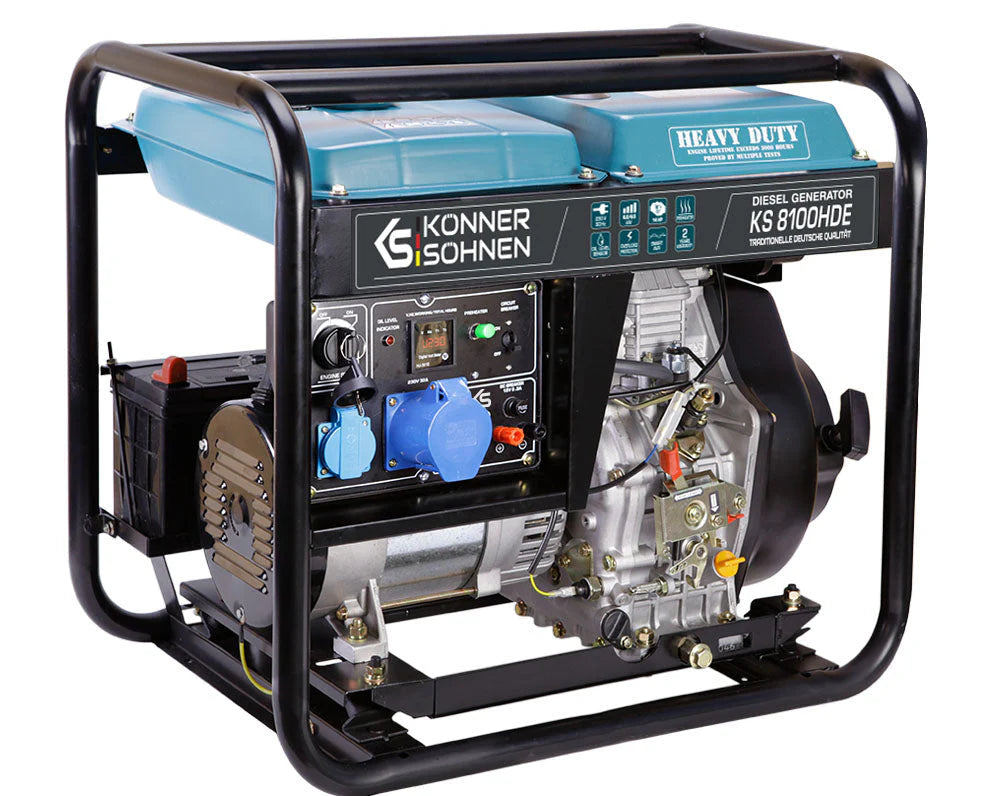

Diesel generator KS 8100HDE (EURO V)

Diesel generator KS 8100HDE (EURO V)

€1.268,00 EUR
€1.268,00 EUR
Sale Sold out
Taxes included.

Benefits

  • Increased engine life thanks to the use of high-quality materials
  • Pre-heating ensures easy starting even at low ambient temperatures
  • Maintains stable output voltage: AVR automatically regulates the output voltage, keeping it at a constant level
  • The display shows important information about the generator's operation to monitor its performance
  • The reinforced frame makes the generator resistant to damage during operation and transport.

    Company engines

    Engines for diesel generators, as well as for petrol devices, are manufactured under license from DIMAX Int. GmbH and marked with a logo embossed in metal. In all models, the engine power reserve in relation to the alternator allows to issue the declared voltage and maintain stability in the full voltage range. All engines are tested for long continuous operation, then dismantled and examined for detection and removal of faults. Each engine and each generator has an individual serial number, which allows us to control the quality of production and service. The engines meet all international and European standards of quality, economy and ecology, including the latest EURO V emission standard.

    Increased engine life

    Heavy DUTY series generators are suitable for use not only as a backup power source, but also for long-term operation. The service life of the engines exceeds 3,000 operating hours, which is confirmed by multi-level and multi-hour tests and a guarantee. It is obvious that the engines have such high efficiency indicators with proper operation and required maintenance.

    Pre-start heating (Preheater)

    HEAVY DUTY series generators are equipped with a pre-start heating function (preheater), thanks to which you can start the generator in the winter season without unnecessary effort.

    Avr

    Könner & Söhnen generators from the HEAVY DUTY series are equipped with an intelligent AVR voltage stabilization system. It allows the generator output voltage to be maintained at a constant level of 230V and protects it against short circuit and overload.

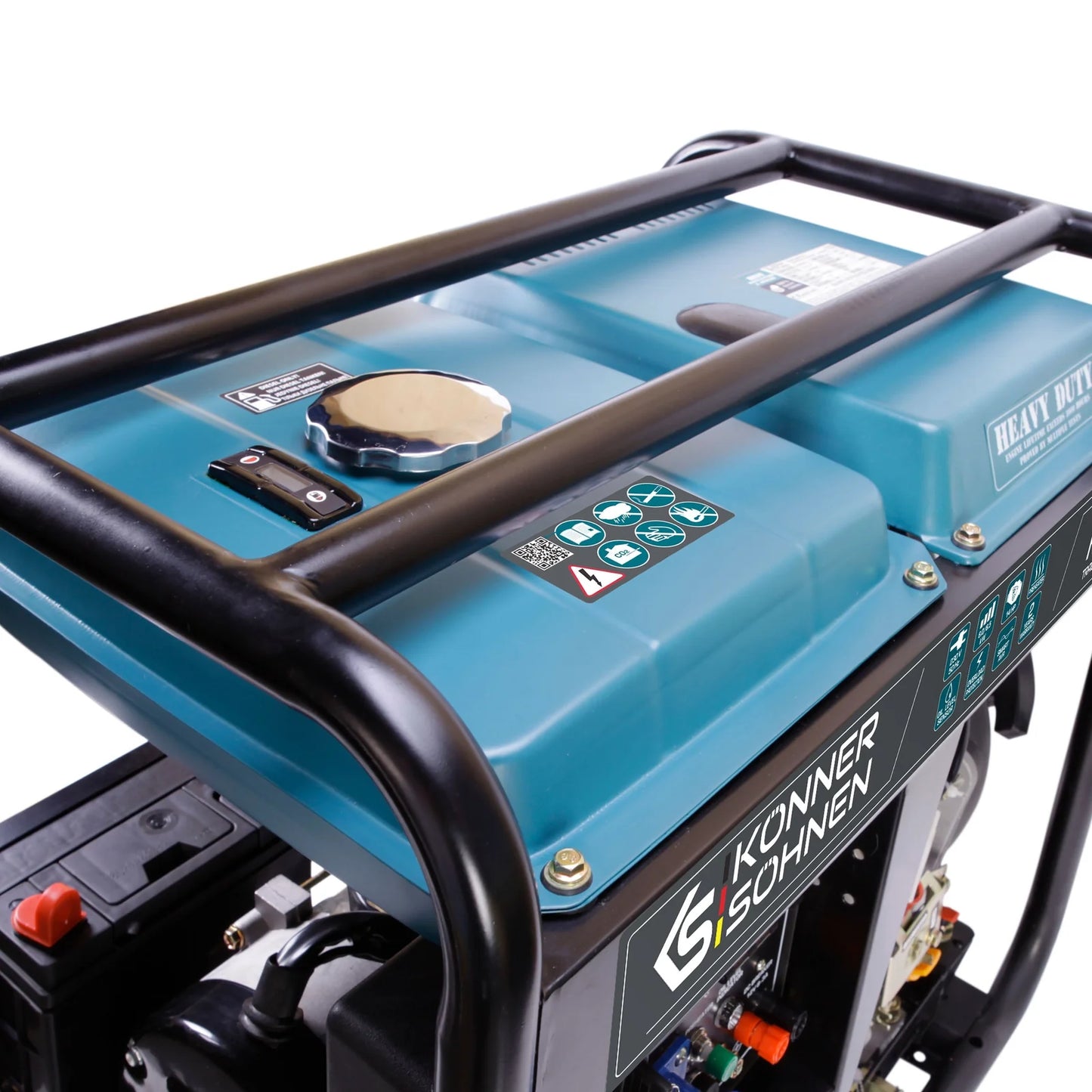

    Reinforced frame

    Thanks to the additional reinforcement of the frame with upper protective strips, the professional HEAVY DUTY series generator can operate in more dangerous conditions. The reinforced frame structure additionally protects against damage to the tank during operation and transport.
    Voltage, V 230
    Max/Nom Power (230V), kW 6.5/6
    Frequency, Hz 50**
    Current strength (max), A 28.26
    Nests 1 x Schuko 230 V, 1 x CEE 230 V 32 A
    Operating time at 50% load, h*** 6.9
    led display Voltage, frequency, operating hours counter
    Noise level Lpa/Lwa, dB 71/96
    12V outlet, A 12/8.3
    Engine type Diesel 1-cylinder, 4-stroke, air-cooled
    Engine model KS 480HD-V
    Output power, HP/kW 14.0/10.3
    Preheating +
    Fuel tank capacity, l 11
    Oil tank capacity, l 1.65
    Engine capacity, cm3 456
    Voltage regulator Intelligent AVR system
    Trigger type Manual/Electro
    Frame diameter 32
    Battery, Ah 30
    ATS input -
    Degree of protection IP23M
    Net dimensions (LxWxH), mm 730×495×630
    Gross dimensions (LxWxH), mm 760×550×660
    Net weight, kg 117
    Gross weight, kg 125.0
    SKU KS8100HDE
    Barcode 4260405362110

    **In transient modes, the generator frequency may change in a short period, i.e. during normal generator operation, a deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency may be 49-54Hz.

    ***Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.
