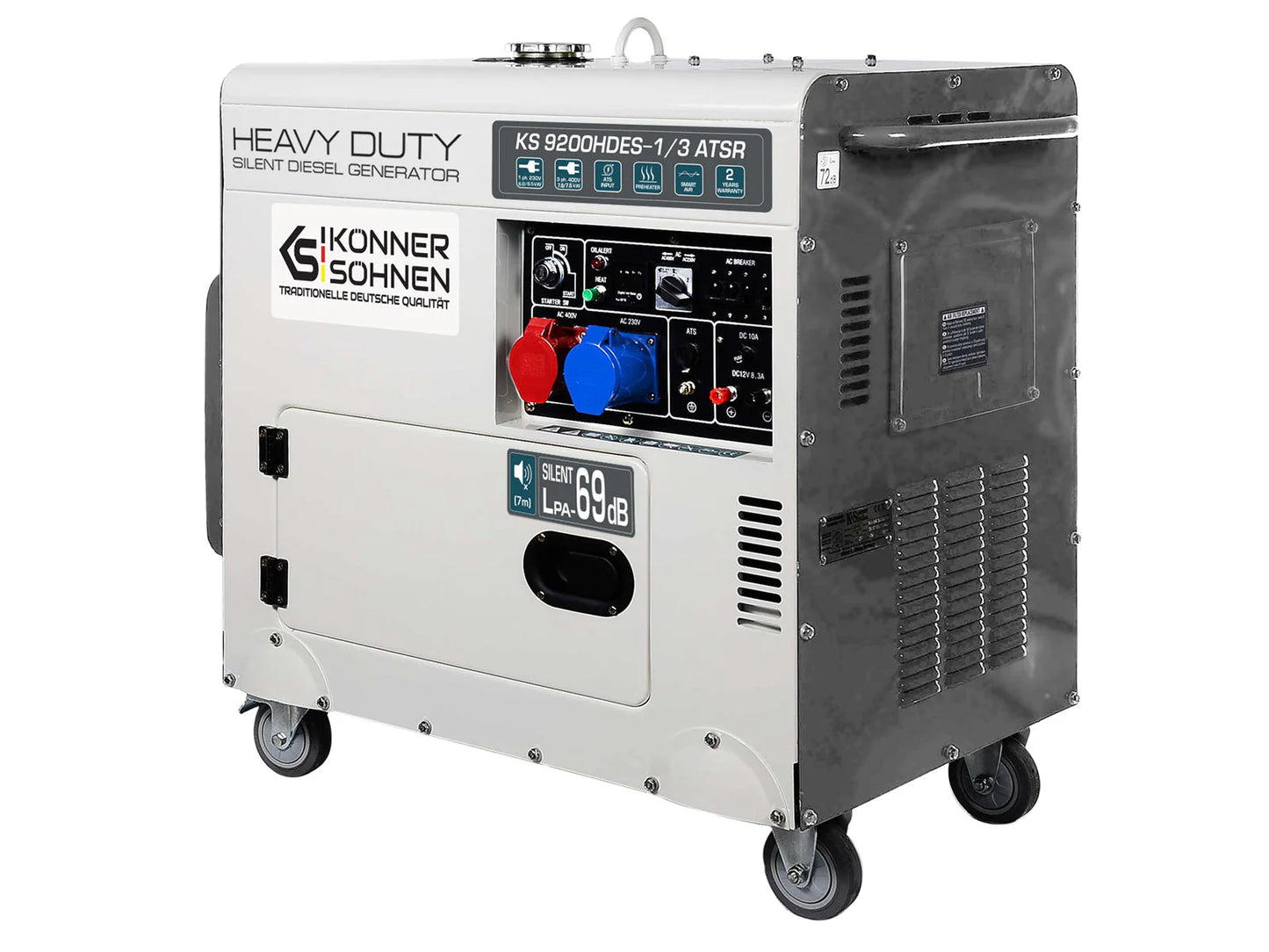

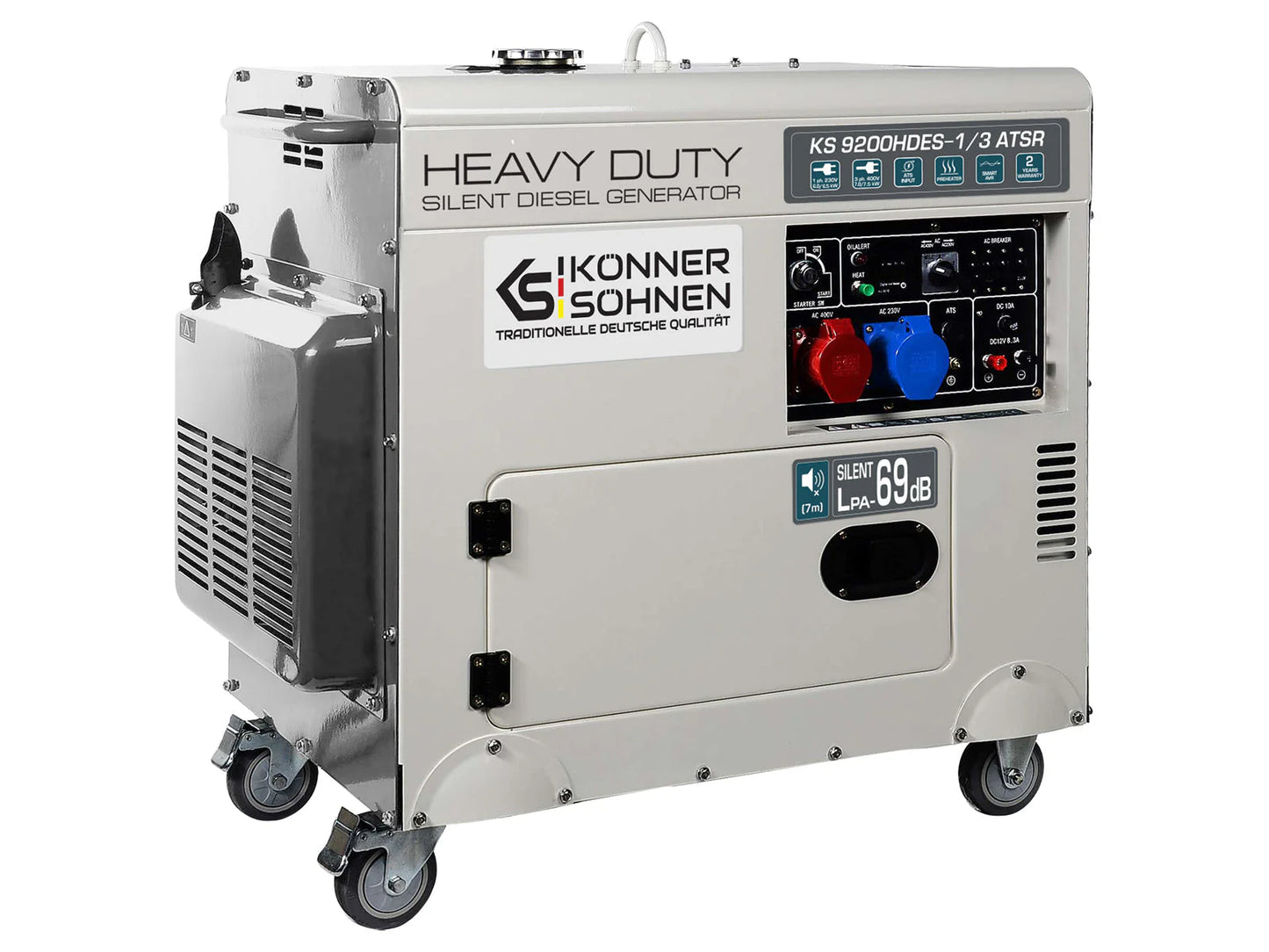

Diesel generator KS 9200HDES-1/3 ATSR (EURO V)

Diesel generator KS 9200HDES-1/3 ATSR (EURO V)

€1.799,00 EUR
€1.799,00 EUR
Sale Sold out
Taxes included.

Benefits

  • The unique serial number on the engine ensures that you receive an original product with guaranteed quality
  • The VTS system makes the generator versatile for both household and industrial electrical devices
  • Compliance with European standards, including the modern environmental standard EURO V, minimizes the impact on the environment
  • The anti-vandal cover makes it more difficult to steal the generator
  • Allows for the connection of an automatic voltage regulator (AVR), ensuring uninterrupted power supply to devices

    Vts system

    Universal generators 2 in 1 with a unique phase switching system VTS (Voltage Transfer Switch), which allows you to use one generator as a single-phase (230V) and three-phase (400V) with almost no loss of power. Each mode has its own automatic protection. No need to buy two separate generators.

    Branded engines

    Engines for diesel generators, as well as for gasoline, are manufactured under license DIMAX Int. GmbH and are marked with their own brand with the logo. In all models, the power reserve of the engine in relation to the alternator allows you to issue the declared voltage and maintain its stability in the full range of voltages. All engines are tested for long continuous operation, and then disassembled and examined for faults. Each engine and each generator has an individual serial number, which allows us to control the quality of production and service. The engines comply with all international and European standards of quality, efficiency, environmental friendliness (including the level of harmful emissions and noise).

    Automatic transfer switch

    The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers load to it when the main power supply is disconnected and automatically stops the generator when the central power supply is restored.

    Pre-start heating (preheater)

    Diesel generators series "HEAVY DUTY" are equipped with a pre-start heating function, which allows you to run the generator in the winter without much effort.

    Housing

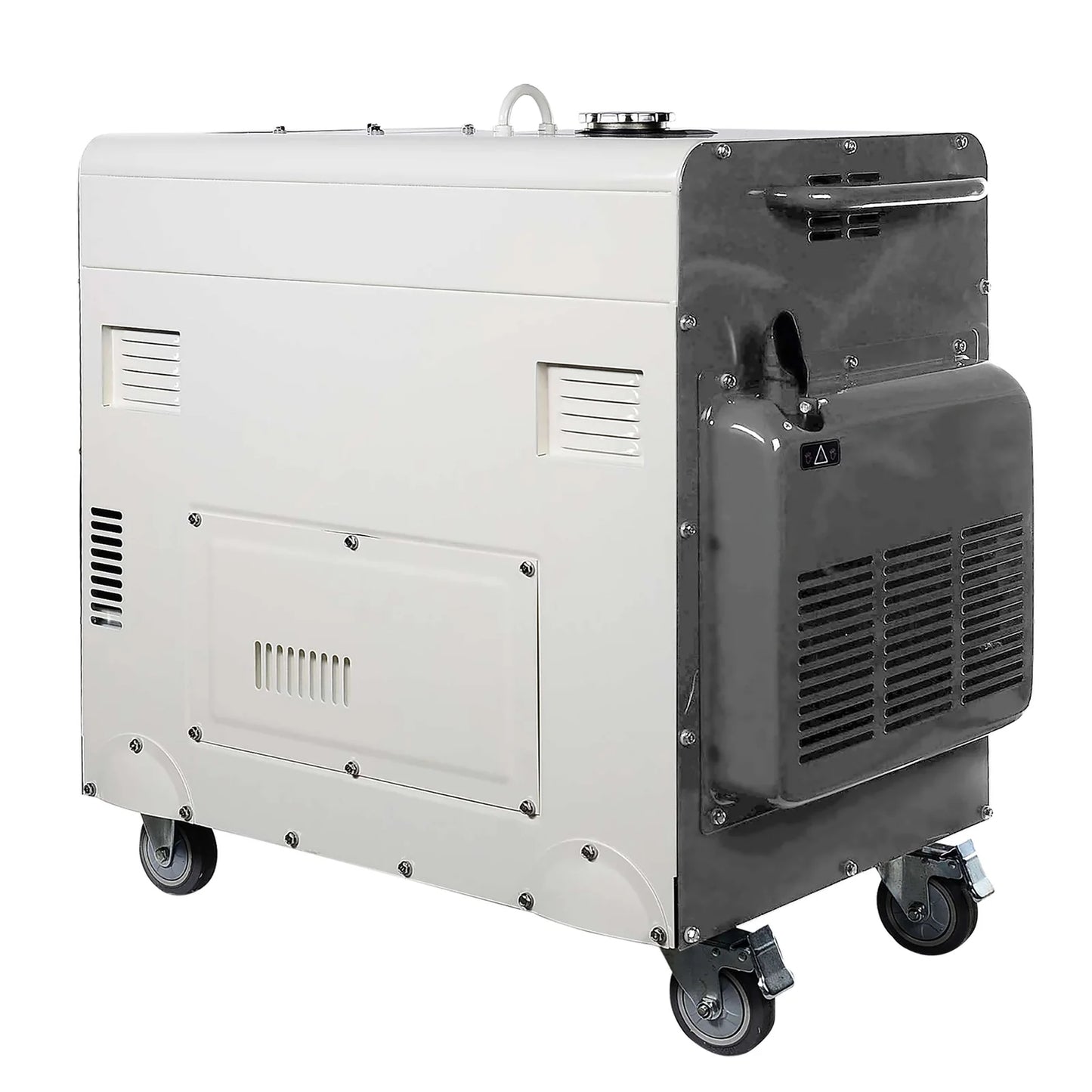

    All-season, noise-absorbing, vandal-proof casing provides effective protection of the generator and prolongs its service life. The casing is equipped with handles and transport wheels for easy movement.
    Voltage, V 230/400
    Max/Nominal power (230V), kW 6.5/6.0
    Max/Nominal power (400V), kW 7.5/7.0
    Frequency, Hz 50**
    Current (max.) 230/400 V, A 28.26/13.54
    Outlets 1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A
    Avg. working time (power 50%), h*** 11.1
    LED display Voltage, frequency, working hours
    Noise level Lpa (7m)/Lwa, dB 69/94
    Power output DC, V/А 12/8.3
    Engine type Diesel powered one-cylinder, four-stroke air-cooled
    Engine model KS 520HD-V
    Engine power, hp/kW 18.0/13.24
    Preheater +
    Fuel tank volume, l 20
    Crank case volume, l 1.65
    Engine cylinder volume, cm3 498
    Power output controller Intelligent voltage stabilization system AVR
    Engine start Electric
    Output for ATS +
    Protection class IP23M
    Net dimensions (LxWxH), mm 900x545x905
    Gross dimensions (LxWxH), mm 960x570x985
    Net weight, kg 168
    Gross weight, kg 178.0
    SKU KS 9200HDES-1/3 ATSR
    Barcode 4260405362363

    **In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

    ***Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.
