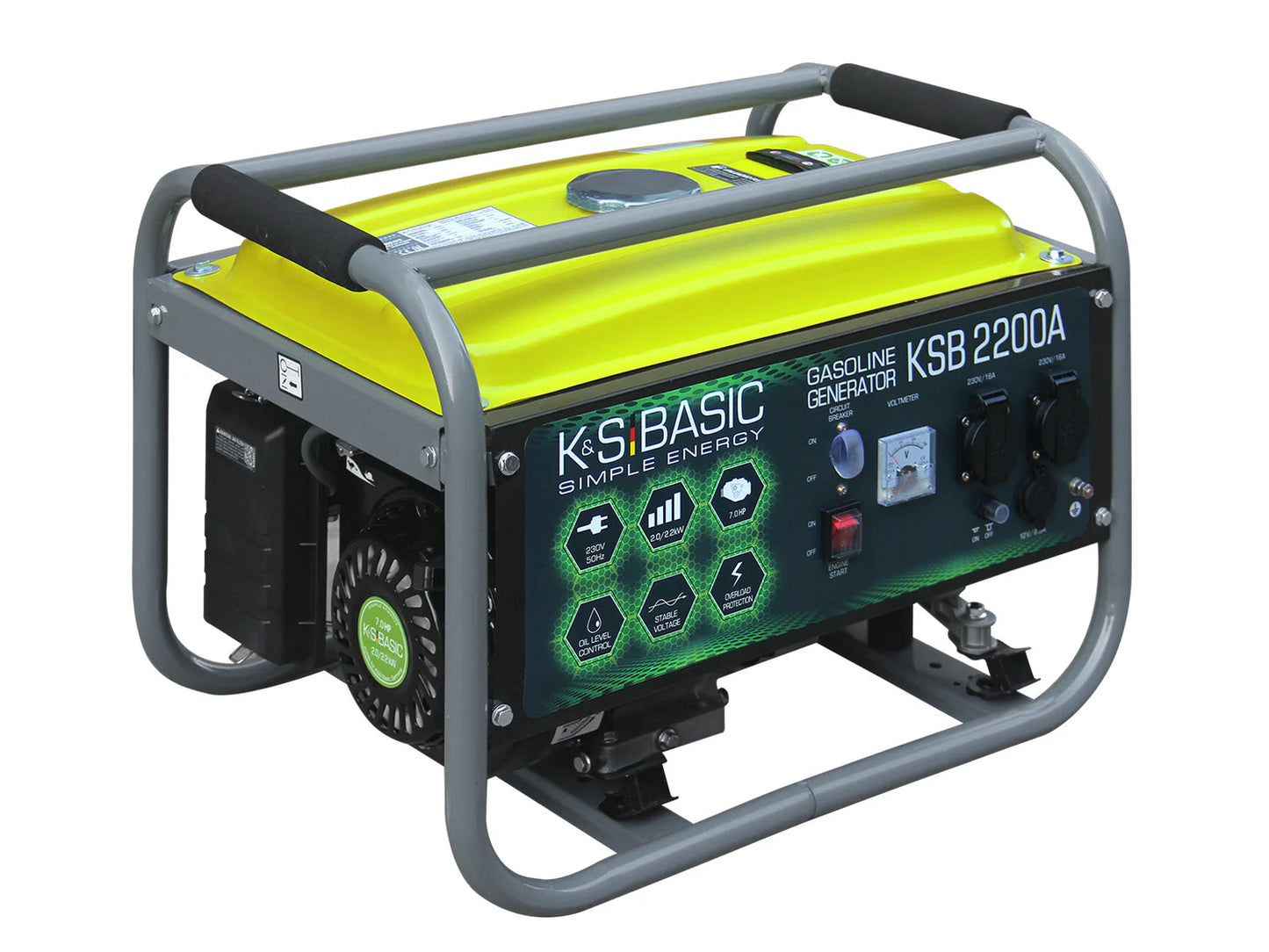

Gasoline generator "K&S BASIC" KSB 2200A
Gasoline generator "K&S BASIC" KSB 2200A
Regular price
€269,00 EUR
Regular price
Sale price
€269,00 EUR
Unit price
/
per
Taxes included.
Couldn't load pickup availability
K&s basic engines
Specially for the "K&S Basic" trademark German engineers have created K&S series engines, that have passed multi-hour and multi-level tests, that’s why they are so reliable.
Elastic handles
Elastic handles are used for convenient transportation. They perfectly complement the design and the final product form.
Easy start system
EASY START system allows you to start the engine quickly and to do this without much effort. More powerful models are additionally equipped with an electric start system.

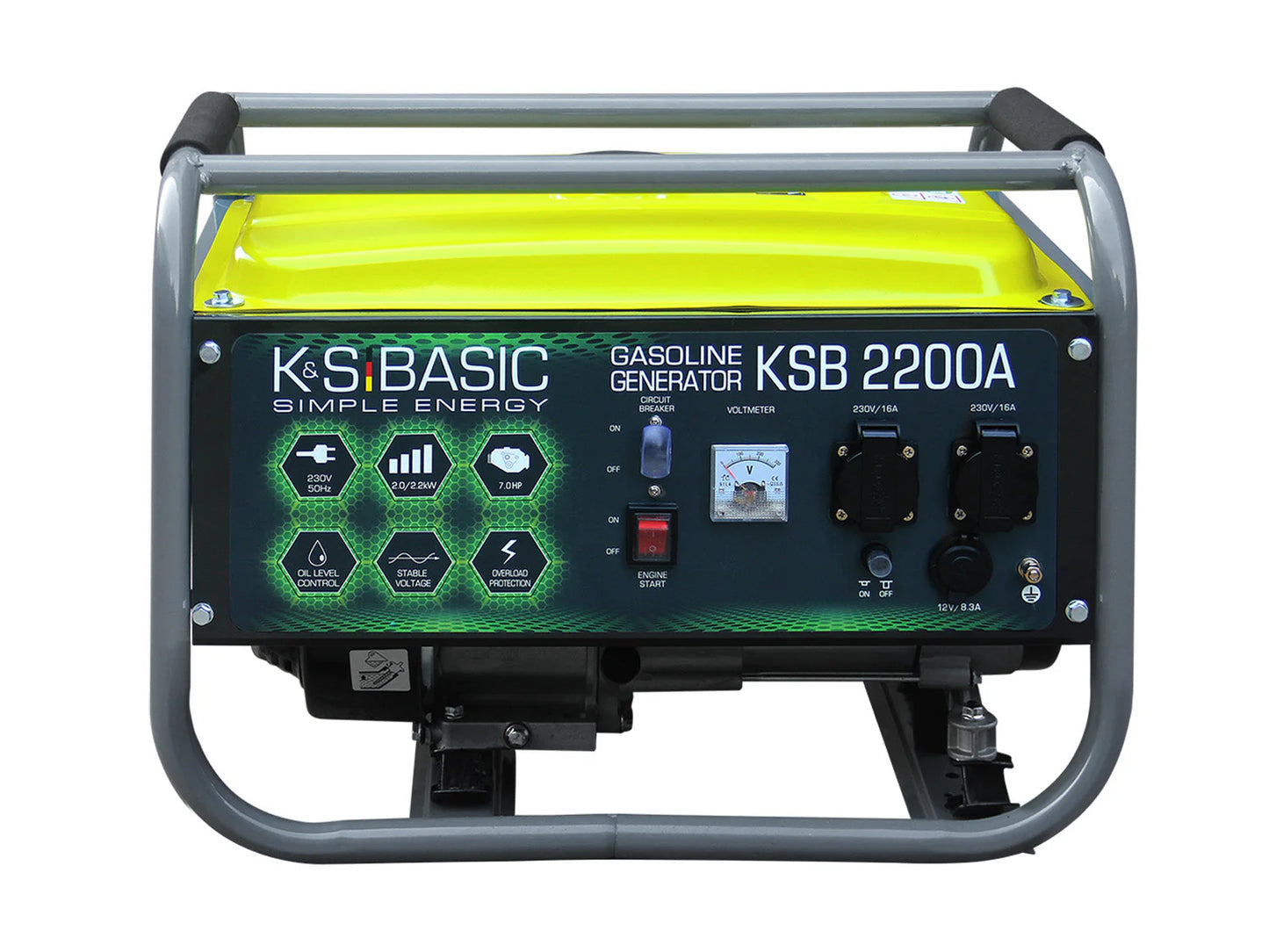

Ergonomic control panel
Сonvenient and ergonomic panel of generator allows you to control the entire unit easily and does not require additional skills. The voltmeter on the panel shows voltage emitted by the device in the range from 0 to 300 volts. It helps to control generator's output voltage and be sure that all the equipment connected works stably.
Avr
К&S Basic generators are equipped with intelligent voltage stabilization system AVR. It allows to keep the output generator voltage at a constant value of 230 V and protects against unwanted short circuits.
| Voltage, V | 230 |
| Max power, kW | 2.2 |
| Nominal power, kW | 2 |
| Frequency, Hz | 50** |
| Current (max), A | 9.57 |
| Outlets | 2 x Schuko 230 V |
| Fuel tank volume, l | 12 |
| Voltmeter | + |
| Noise level Lpa (7m)/Lwa, dB | 70/95 |
| Power output DC, V/А | 12/8.3 |
| Engine model | KSB 220 |
| Engine type | Gasoline 4-stroke |
| Engine power, hp | 7 |
| Crank case volume, l | 0.6 |
| Engine cylinder volume, cm3 | 210 |
| Power output controller | Intelligent voltage stabilization system AVR |
| Engine start | Manual |
| Alternator winding | Aluminum |
| Protection class | IP23M |
| Gross dimensions (LxWxH), mm | 605x440x435 |
| Net weight, kg | 33.2 |
| Gross weight, kg | 35.0 |
| SKU | KSB 2200A |
| Barcode | 4260405361984 |
**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz
*** Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.
