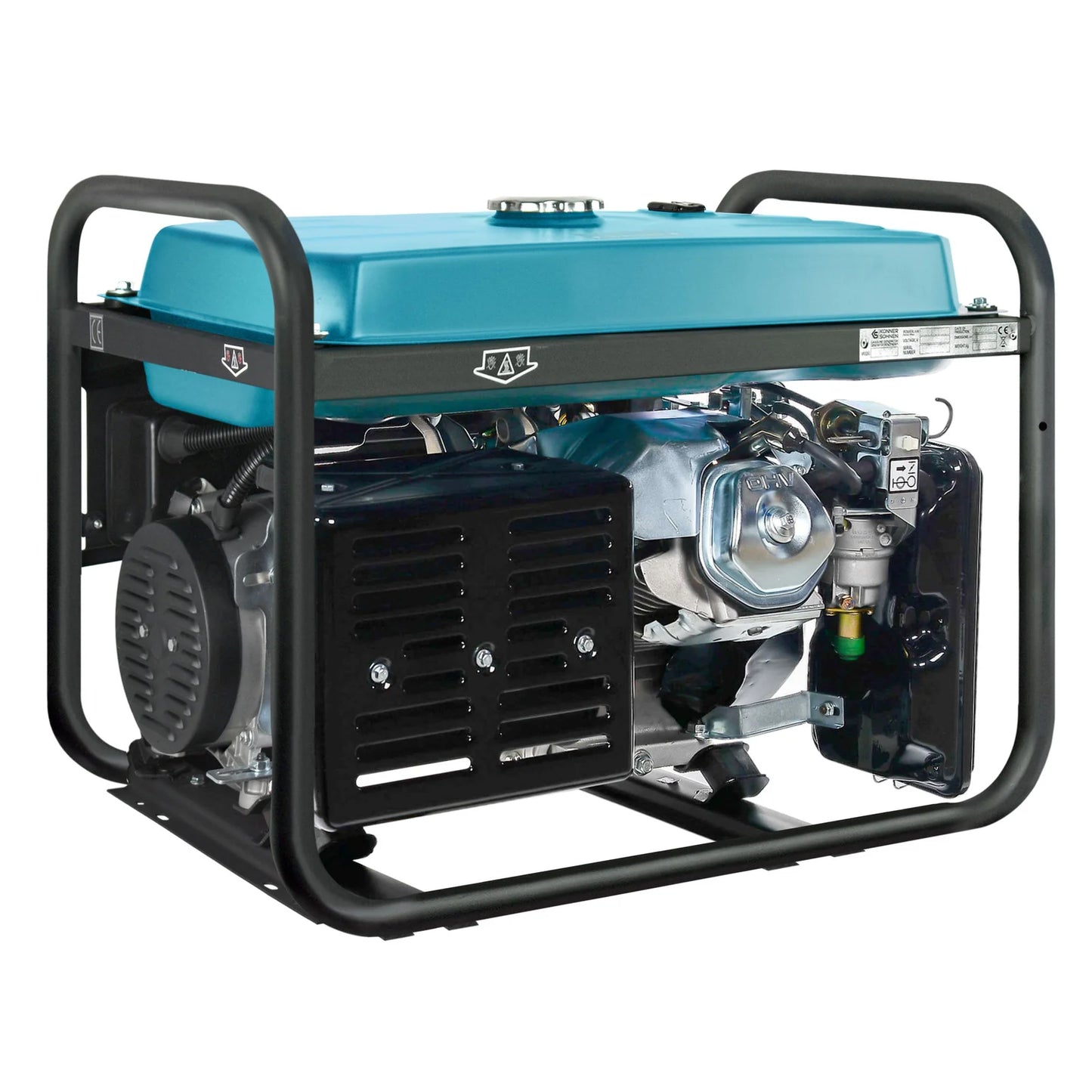

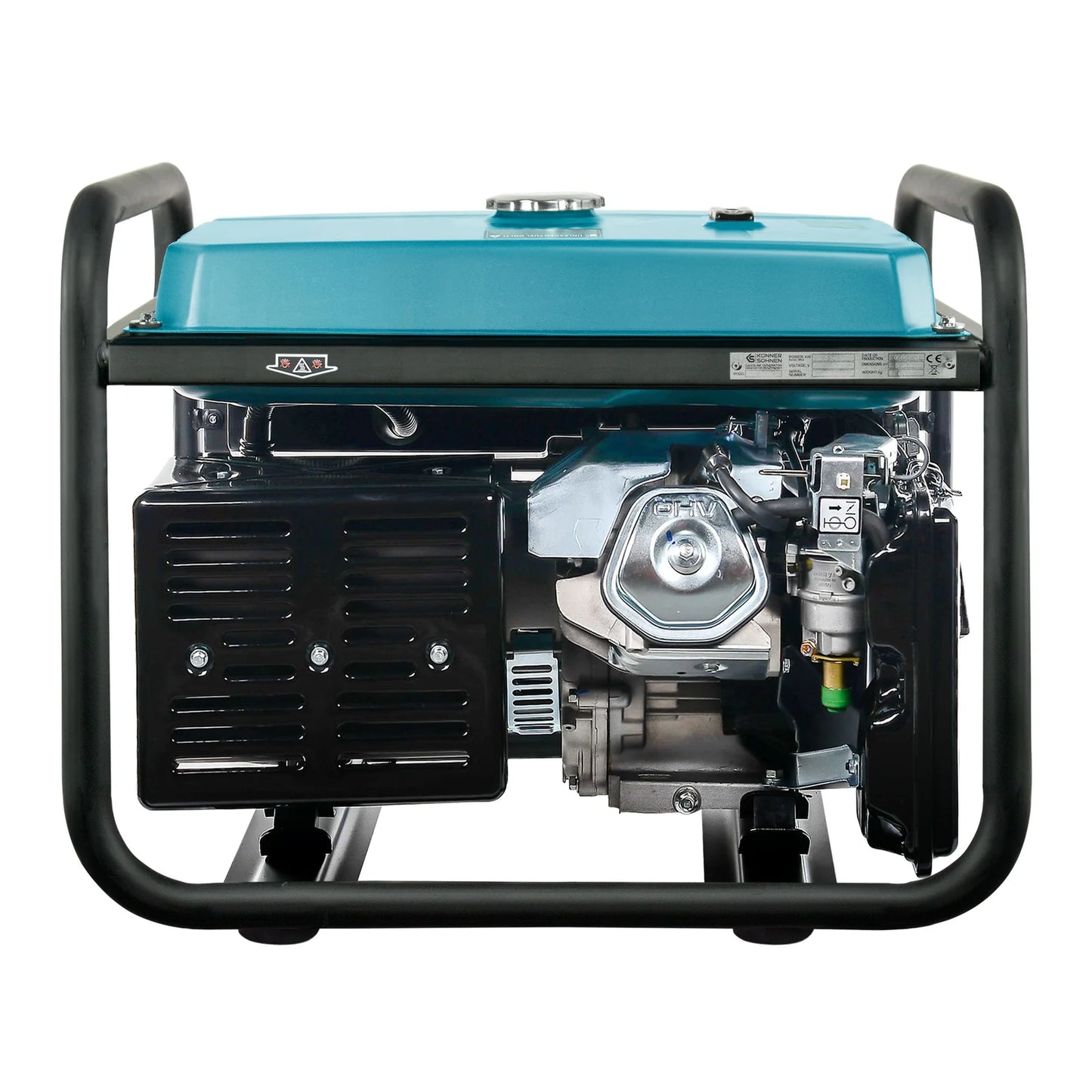

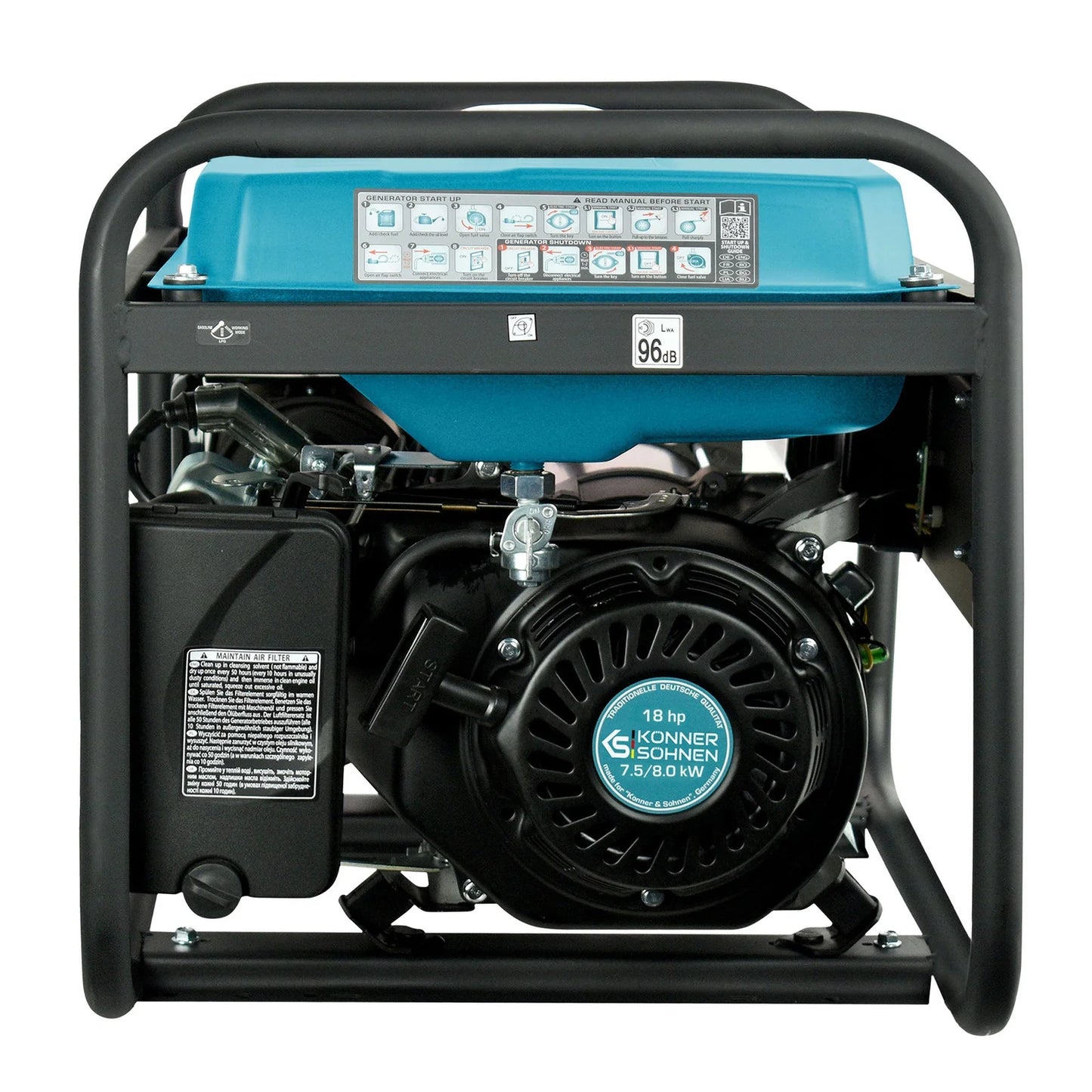

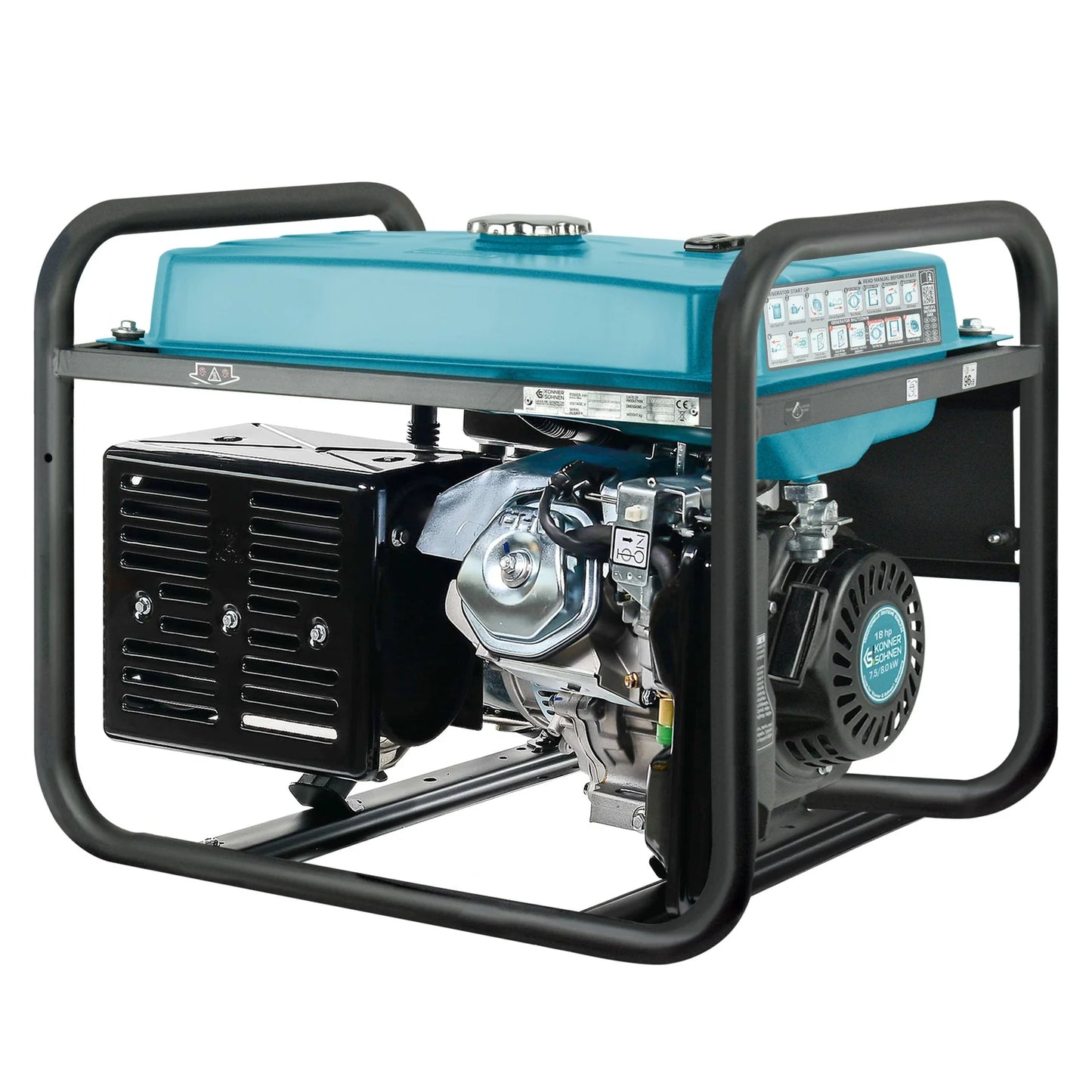

Gasoline generator KS 10000E-3 ATS

Gasoline generator KS 10000E-3 ATS

€1.079,00 EUR
€1.079,00 EUR
Sale Sold out
Taxes included.

Benefits

  • Features an AVR system that allows it to start and stop automatically without additional operator actions
  • Prevents counterfeiting: Unique serial number helps prevent engine fraud
  • Wide range of additional features: Automatic start, electrical protection, and hour meter
  • Includes anti-vibration pads that significantly reduce vibration and extend the generator's lifespan
  • Sturdy steel frame and rubber feet provide additional vibration reduction

    Könner & söhnen engines

    Specially for the Könner & Söhnen trademark German engineers have created K&S series engines, that have passed multi-hour and multi-level tests, that’s why they are so reliable. High-performance K&S engines comply with the latest EURO V emission standards.

    Built-in ats system

    The generator control panel with the ATS function (automatic transfer switch) is equipped with power terminals, ATS switch and ATS operation indicator.

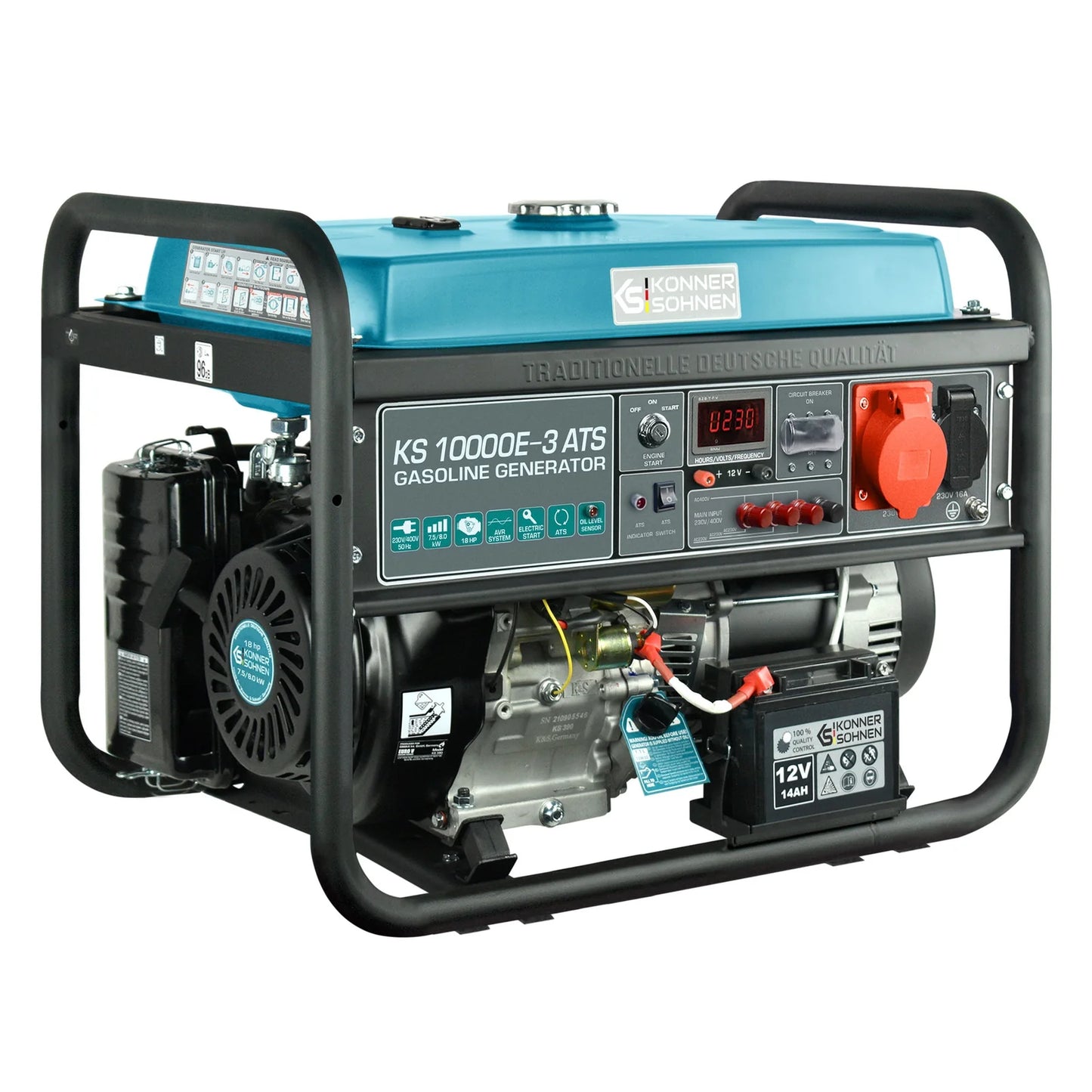

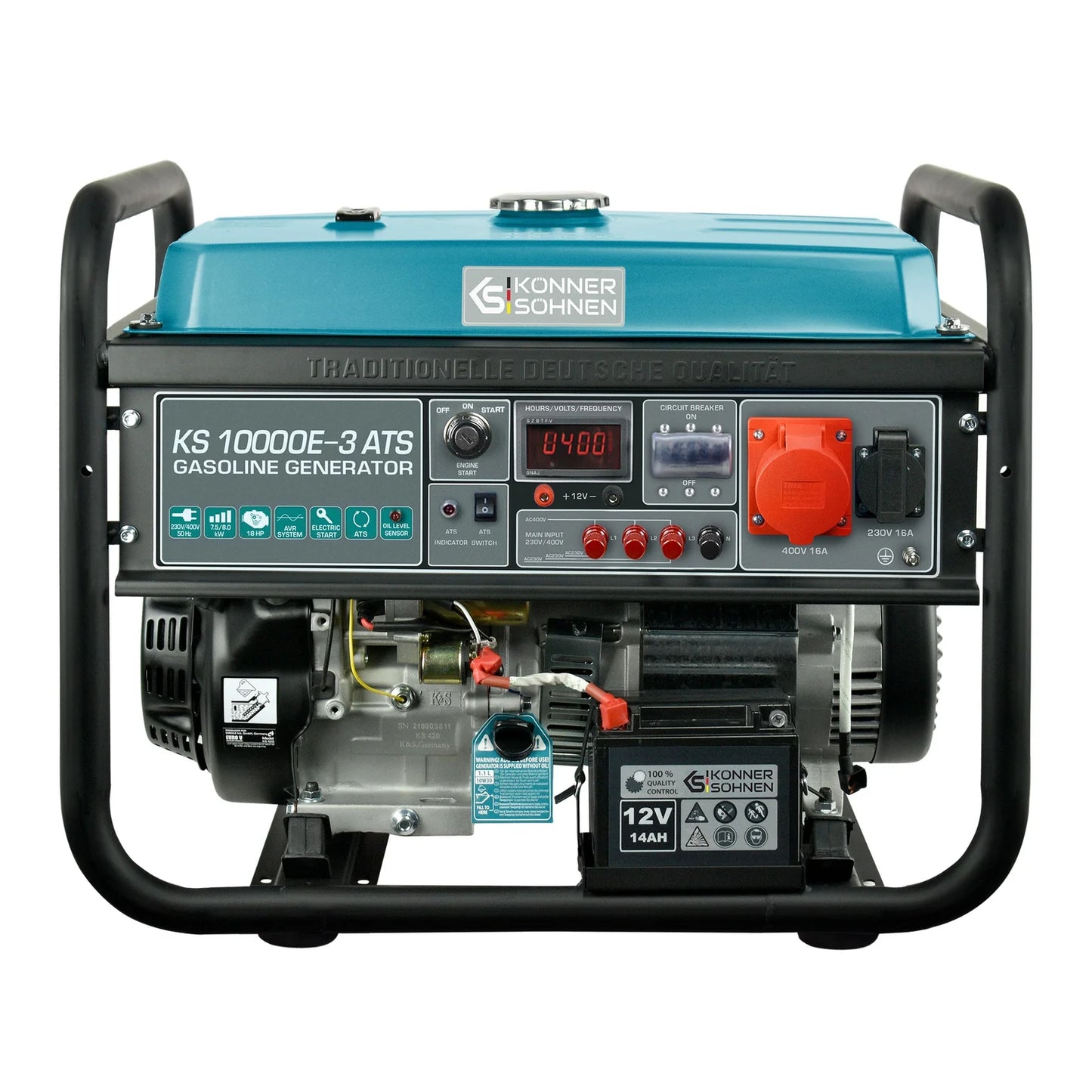

    Convenient ergonomic control panel with electic start

    Сonvenient and ergonomic panel of generator allows you to control the entire unit easily and does not require additional skills. The modern intelligent LED display will always indicate the number of hours worked, frequency and voltage output. The information on the display helps to control the device load and timely maintenance the generator, extending the life of the operation.

    230v or 400v

    The presented series includes models for single- and three-phase consumers. The generator control panel with the ATS function has corresponding 230V and 400V mains terminals.

    Switching contactors

    Reliable 100% copper switching contactors have an increased capacity of 40 A, which ensures long-term failsafe performance of the ATS system.

    Easy start system

    Easy start system system allows you to start the engine quickly and to do this without much effort. For ease of use, generators of this type have three types of startup - manual, electric and automatic. More powerful models are additionally equipped with an electric start system.
    Voltage, V 400
    Max power, kW 8
    Nominal power, kW 7.5
    Frequency, Hz 50**
    Current (max), A 14.45
    Outlets 1 x Schuko 230 V, 1 x CEE 400 V 16 A
    Fuel tank volume, l 25
    Avg. working time (power 50%), h*** 15
    LED display Voltage, frequency, working hours
    Noise level Lpa (7m)/Lwa, dB 71/96
    Power output DC, V/А 12/8.3
    Engine model KS 440
    Engine type Gasoline powered one-cylinder, four-stroke air-cooled
    Engine power, hp/kW 18.0/13.24
    Fuel type Gasoline
    Crank case volume, l 1.2
    Engine cylinder volume, cm3 440
    Power output controller Intelligent voltage stabilization system AVR
    Engine start Manual/electric/auto
    Alternator winding Copper
    Protection class IP23M
    Net dimensions (LxWxH), mm 680x545x550
    Gross dimensions (LxWxH), mm 700x545x590
    Net weight, kg 89.2
    Gross weight, kg 91.6
    SKU KS 10000E-3 ATS
    Barcode 4260405361700

    **In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

    *** Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.

View full details
