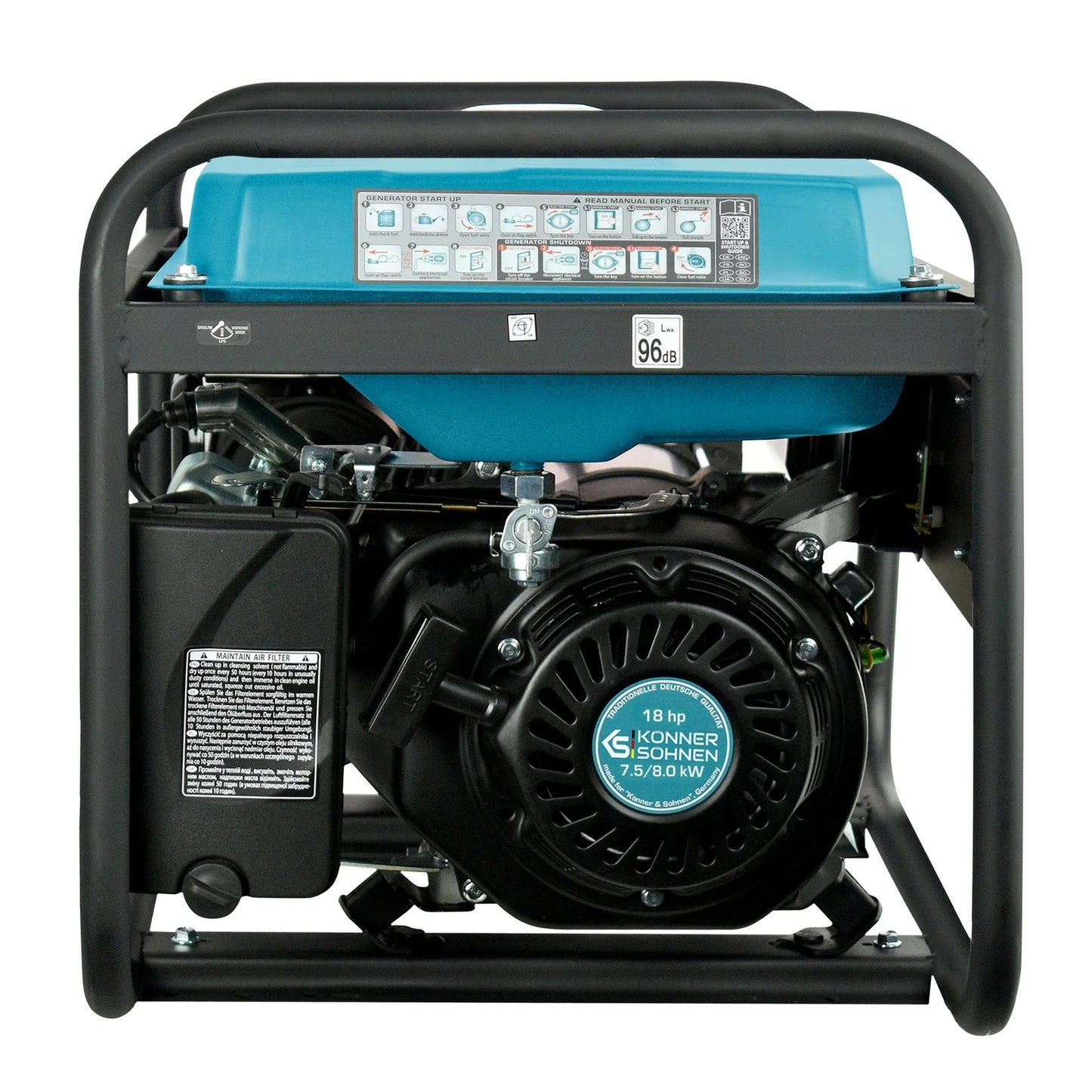

Gasoline generator KS 10000E ATS

Gasoline generator KS 10000E ATS

€1.079,00 EUR
€1.079,00 EUR
Sale Sold out
Taxes included.

Benefits

  • Equipped with the ATS function that allows the generator to automatically activate during a power outage
  • Suitable for environments used by women or the elderly,and for locations with extreme temperature or lighting conditions
  • Professional, durable, and powerful generator that makes power outages a non-issue
  • Includes the ability to connect a welding inverter
  • Equipped with vibration dampers for smooth and uninterrupted operation

    Könner & söhnen engines

    Specially for the Könner & Söhnen trademark German engineers have created K&S series engines, that have passed multi-hour and multi-level tests, that’s why they are so reliable. High-performance K&S engines comply with the latest EURO V emission standards.

    Individual serial numbers on engines

    Könner & Söhnen engines meet all world and European standards of quality, including the harmful emissions level and noise level. This is proved by European certificates of quality. Each engine and each generator have their own individual serial number, which allows us to control the quality of production and service. Könner & Söhnen motors have easy start and low vibration. The KS 10000 range of gasoline generators is equipped with a reliable 1-cylinder 18 hp engine

    Built-in ats system

    The generator control panel with the ATS function (automatic transfer switch) is equipped with power terminals, ATS switch and ATS operation indicator.

    Convenient ergonomic control panel with electic start

    Сonvenient and ergonomic panel of generator allows you to control the entire unit easily and does not require additional skills. The modern intelligent LED display will always indicate the number of hours worked, frequency and voltage output. The information on the display helps to control the device load and timely maintenance the generator, extending the life of the operation.

    Switching contactors

    Reliable 100% copper switching contactors have an increased capacity of 40 A, which ensures long-term failsafe performance of the ATS system.
    Voltage, V 230
    Max power, kW 8
    Nominal power, kW 7.5
    Frequency, Hz 50**
    Current (max), A 34.78
    Outlets 1 x Schuko 230 V, 1 x CEE 230 V 32 A
    Fuel tank volume, l 25
    Avg. working time (power 50%), h*** 15
    LED display Voltage, frequency, working hours
    Noise level Lpa (7m)/Lwa, dB 71/96
    Power output DC, V/А 12/8.3
    Engine model KS 440
    Engine type Gasoline powered one-cylinder, four-stroke air-cooled
    Engine power, hp/kW 18.0/13.24
    Fuel type Gasoline
    Crank case volume, l 1.2
    Engine cylinder volume, cm3 440
    Power output controller Intelligent voltage stabilization system AVR
    Engine start Manual/electric/auto
    Alternator winding Copper
    Protection class IP23M
    Net dimensions (LxWxH), mm 680x545x550
    Gross dimensions (LxWxH), mm 700x545x590
    Net weight, kg 87.8
    Gross weight, kg 90.2
    SKU KS 10000E ATS
    Barcode 4260405361175

    **In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

    *** Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.
