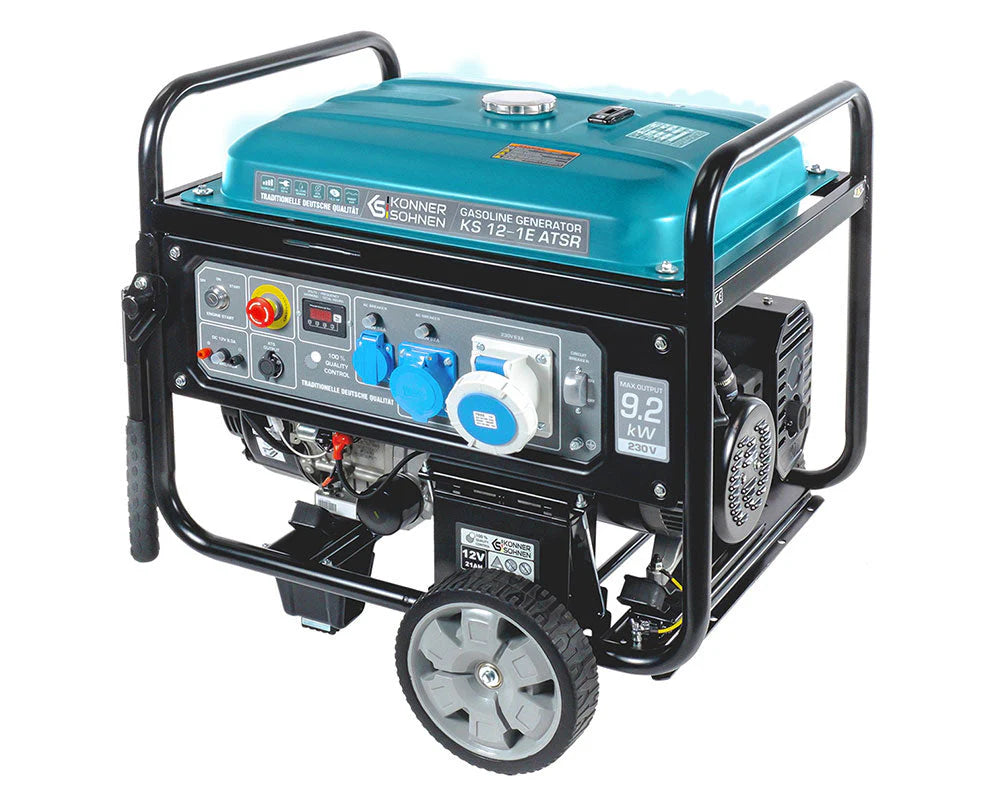

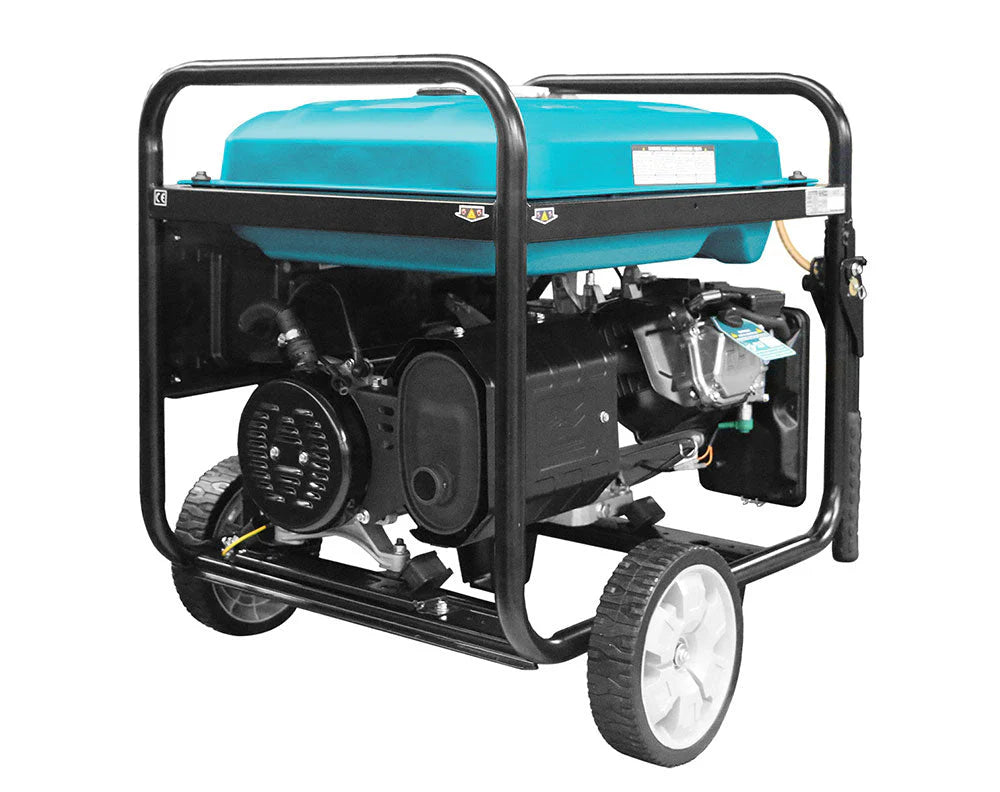

Gasoline generator KS 12-1E ATSR

Gasoline generator KS 12-1E ATSR

€1.799,00 EUR
€1.799,00 EUR
Sale Sold out
Taxes included.

Benefits

  • A powerful single-cylinder four-stroke engine can provide power to a wide range of devices and equipment
  • The option to connect an ATS unit, which is especially convenient during power outages at night or in cold weather
  • Reduced overheating: copper dissipates heat better, helping to prevent generator overheating and extending its service life
  • Informative visualization: a multifunctional LED display ensures clear representation of important operating parameters
  • Portability: despite its significant power of 9 kW, the generator remains quite portable, easily movable thanks to handles and wheels

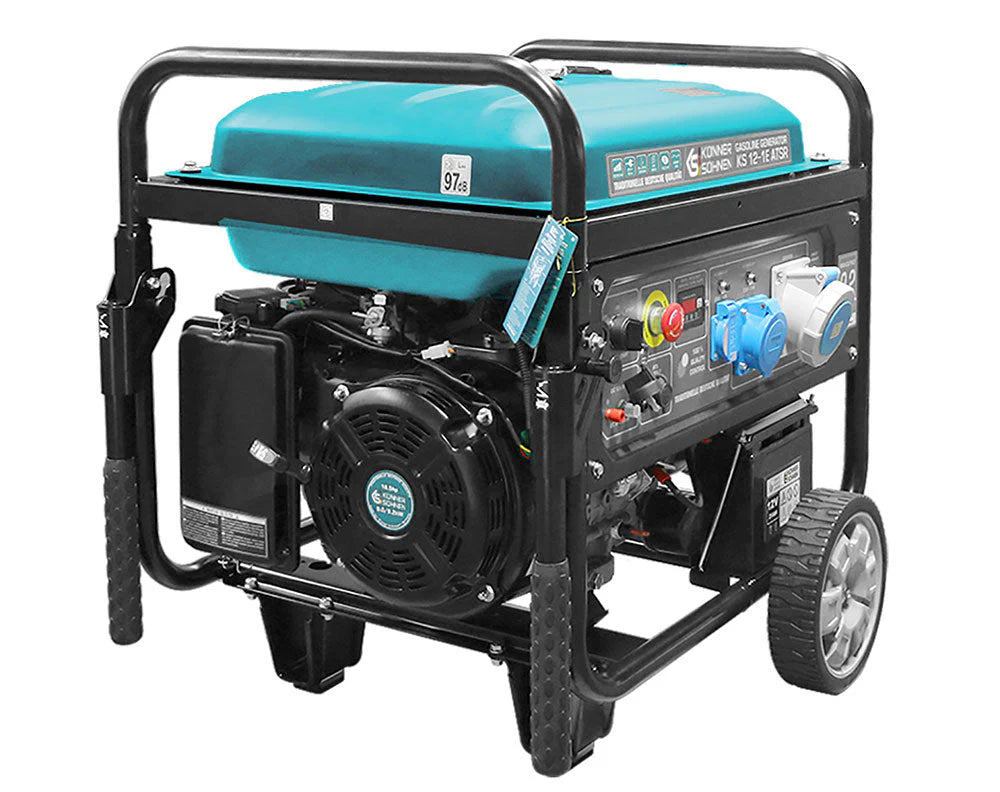

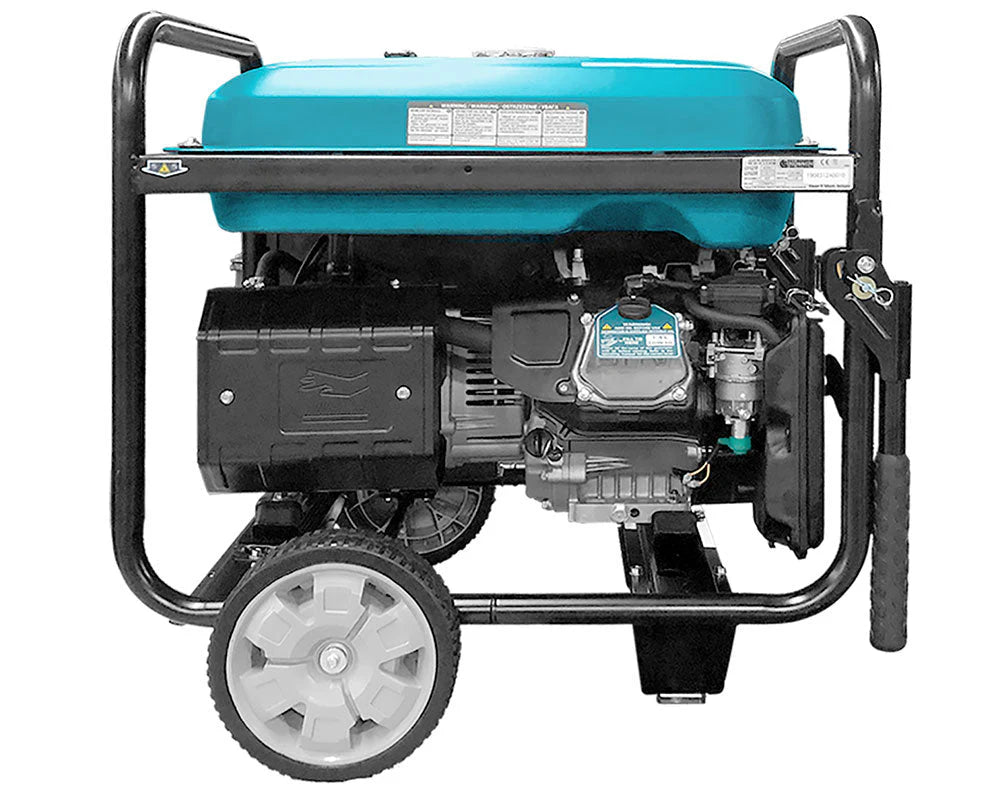

    High-performance engine

    Powerful and reliable 1-cylinders air-cooled engine (18.5 HP), high-performance and costeffective, and conform to European quality standards (including exhaust emissions and noise). Each engine has a corporate K&S stamp and an individual serial number in order to ensure the quality control of manufacture and after-sales service.

    Easy start system

    Easy start system allows you to start the engine quickly and to do this without much effort. More powerful models are additionally equipped with an electric start system. Over Head Valve engine (ОНV) increases the lifespan of engine, reduces fuel consumption and noise level.

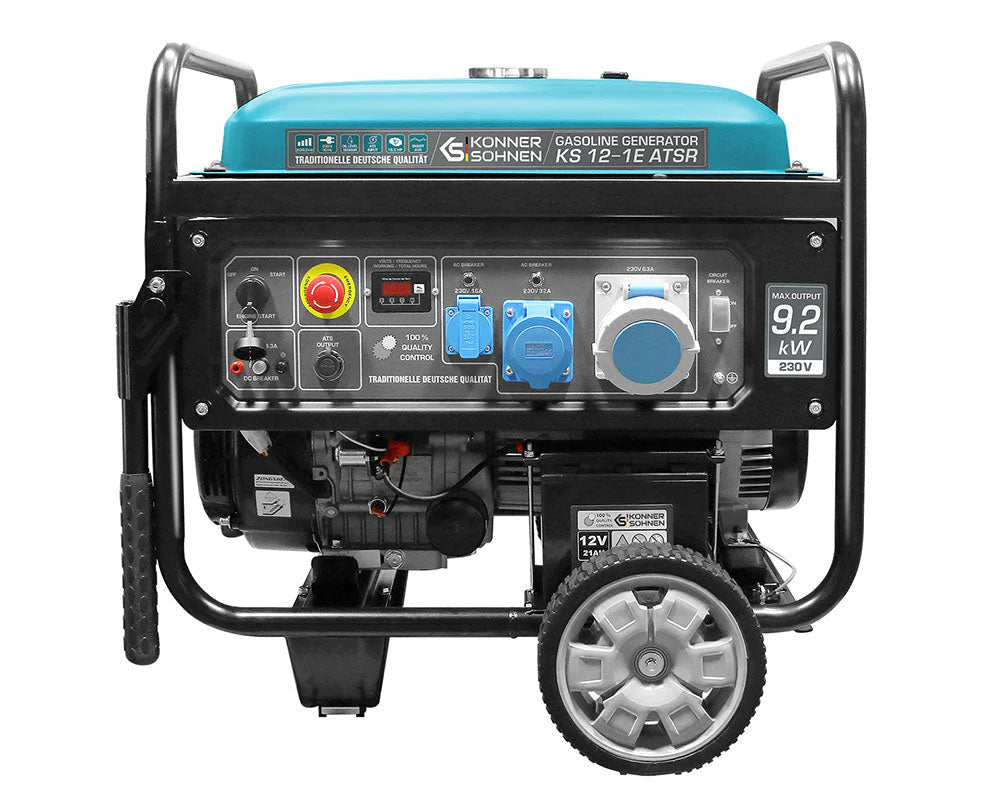

    Ergonomic control panel

    The user-friendly ergonomic control panel allows easy control of the whole device, requires no special skills, and is equipped with sockets designed for removal of full power delivered by the generator and modern LED- display (hour meter, frequency, voltage, oil alarm). PaneI is equipped with engine emergency switch.

    Ats output

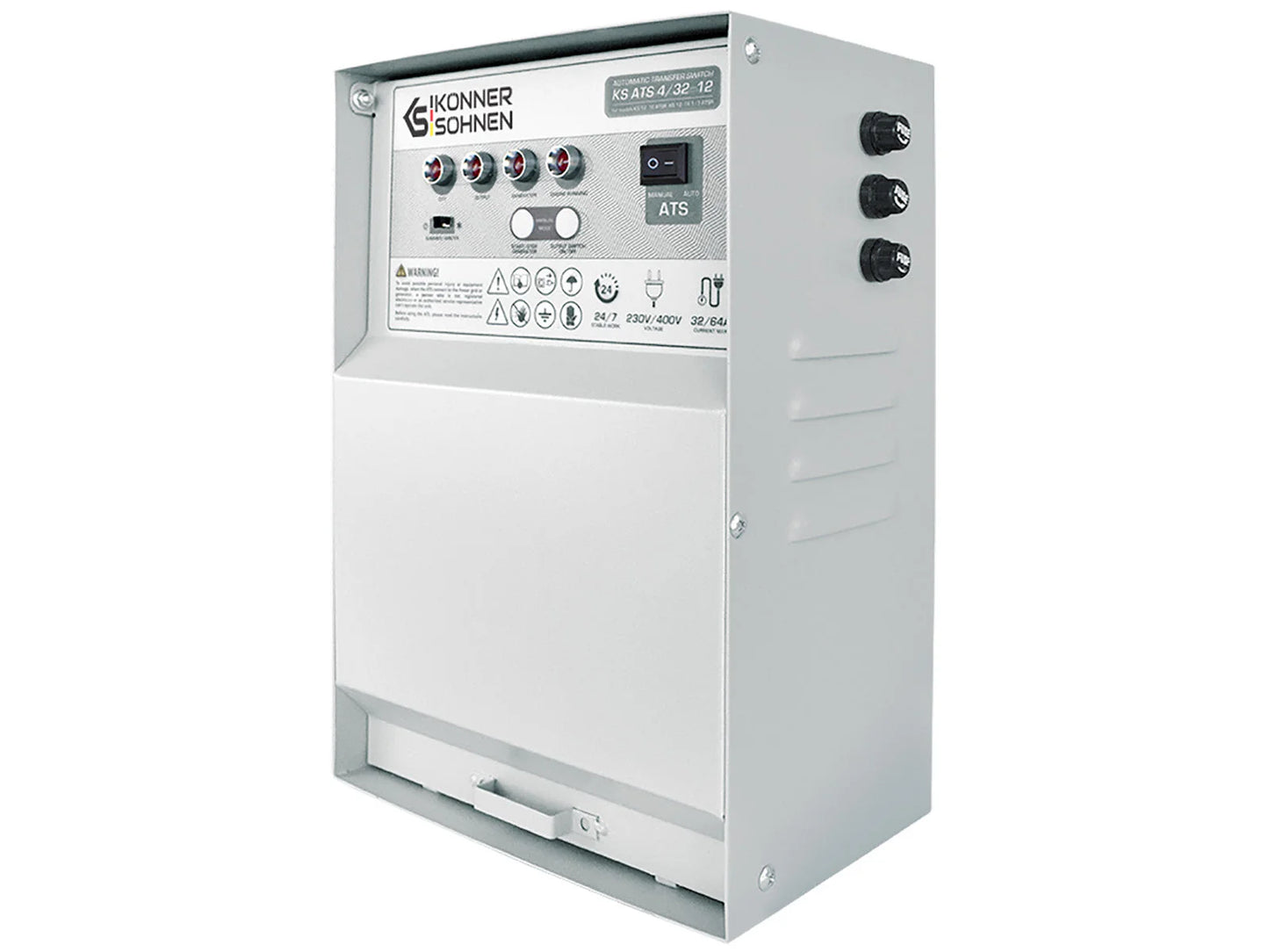

    The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers load to it when the main power supply is disconnected and automatically stops the generator when the central power supply is restored.
    Voltage, V 230
    Max power, kW 9.2
    Nominal power, kW 9
    Frequency, Hz 50**
    Current (max), A 40
    Outlets 1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A
    Fuel tank volume, l 55
    LED display Voltage, frequency, working hours, oil alarm
    Noise level Lpa (7m)/Lwa, dB 71/96
    Power output DC, V/А 12/8.3
    Engine model KS 650
    Engine type Gasoline powered one-cylinder, four-stroke air-cooled
    Engine power, hp/kW 18.5/13.6
    Fuel type Gasoline
    Crank case volume, l 1.4
    Engine cylinder volume, cm3 625
    Power output controller Intelligent voltage stabilization system AVR
    Engine start Manual/electric
    Accumulator (A·h) 21
    Alternator winding Copper
    Protection class IP23M
    Net dimensions (LxWxH), mm 790x705x680
    Gross dimensions (LxWxH), mm 800x715x780
    Net weight, kg 120
    Gross weight, kg 136.0
    SKU KS 12-1E ATSR
    Barcode 4260405363414

    **In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz
