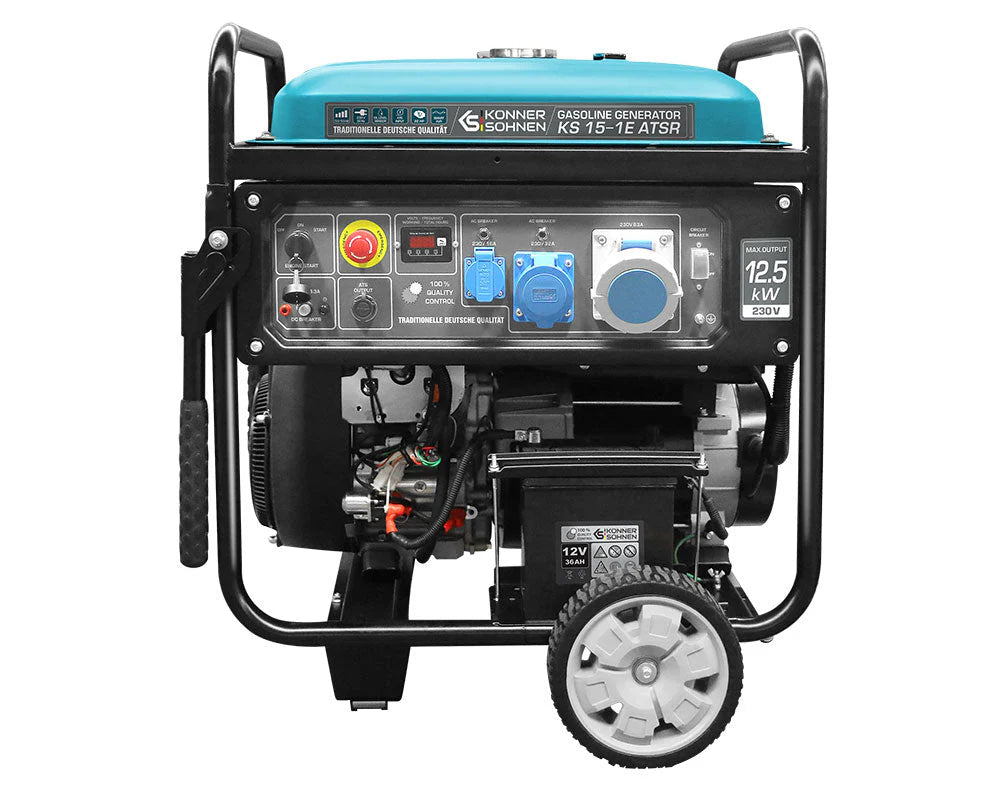

Gasoline generator KS 15-1E ATSR

Gasoline generator KS 15-1E ATSR

€3.239,00 EUR
€3.239,00 EUR
Sale Sold out
Taxes included.

Benefits

  • Autonomy: an ideal option for use in locations without access to the power grid or with frequent power outages
  • Quick start: the generator starts quickly and easily, even in cold weather
  • Generators with larger steel fuel tanks (55 L)
  • Enhanced safety: the multifunctional LED display will alert you to low oil levels or generator overloadhave an extended run time
  • Convenience and comfort: by connecting an ATS, you won't need to manually switch cables or start the generator when the power goes out

    High-performance engine

    Powerful and reliable 2-cylinders air-cooled engine (22 HP), high-performance and costeffective, and conform to European quality standards (including exhaust emissions and noise). Each engine has a corporate K&S stamp and an individual serial number in order to ensure the quality control of manufacture and after-sales service.

    Ergonomic control panel

    The user-friendly ergonomic control panel allows easy control of the whole device, requires no special skills, and is equipped with sockets designed for removal of full power delivered by the generator and modern LED- display (hour meter, frequency, voltage, oil alarm). PaneI is equipped with engine emergency switc.

    Ats output

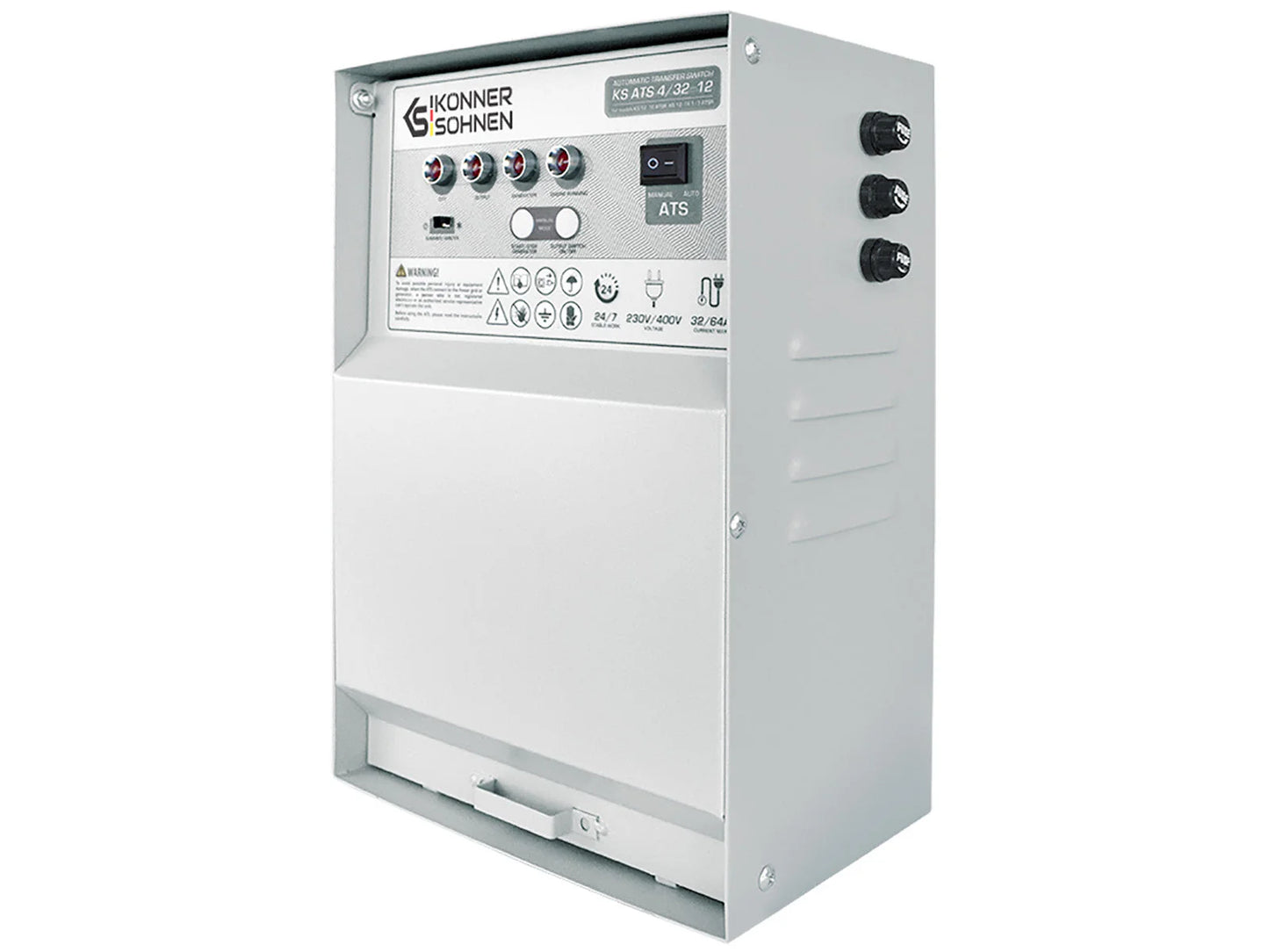

    The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers load to it when the main power supply is disconnected and automatically stops the generator when the central power supply is restored.
    Voltage, V 230
    Max power, kW 12.5
    Nominal power, kW 12
    Frequency, Hz 50**
    Current (max), A 53
    Outlets 1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A
    Fuel tank volume, l 55
    LED display Voltage, frequency, working hours, oil alarm
    Noise level Lpa (7m)/Lwa, dB 72/97
    Power output DC, V/А +
    Engine model KS 780
    Engine type Gasoline powered two-cylinder, four-stroke air-cooled
    Engine power, hp/kW 22.0/16.18
    Fuel type Gasoline
    Crank case volume, l 1.5
    Engine cylinder volume, cm3 750
    Power output controller Intelligent voltage stabilization system AVR
    Engine start Electric
    Accumulator (A·h) 36
    Alternator winding Copper
    Protection class IP23M
    Net dimensions (LxWxH), mm 797×705×805
    Gross dimensions (LxWxH), mm 807×715×905
    Net weight, kg 155
    Gross weight, kg 170.0
    SKU KS 15-1E ATSR
    Barcode 4260405363438

    **In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz
