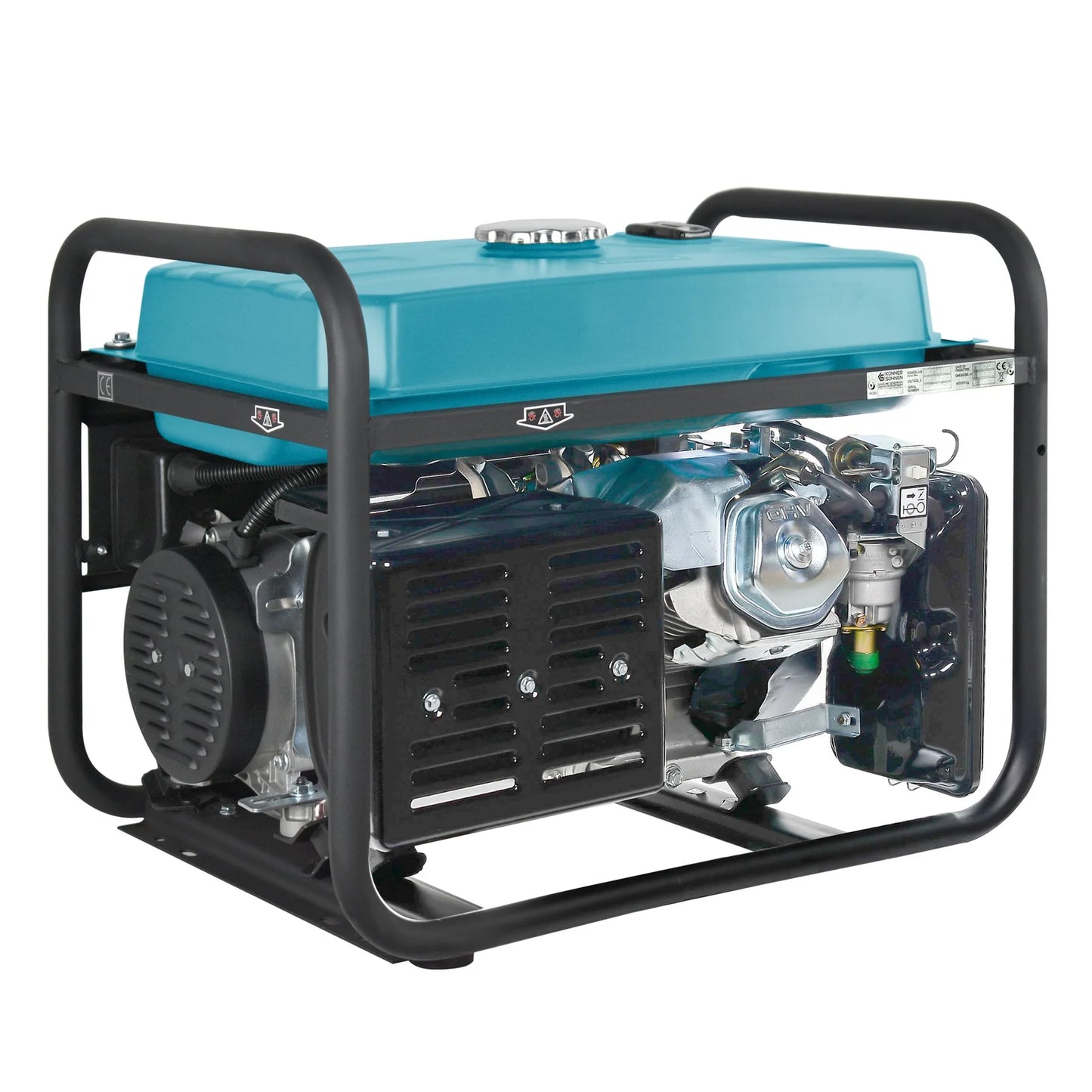

Gasoline generator KS 7000E-3 ATS

Gasoline generator KS 7000E-3 ATS

€899,00 EUR
€899,00 EUR
Sale Sold out
Taxes included.

Benefits

  • Automatic start in the event of a power failure
  • Equipped with electric start for convenience
  • Digital display for monitoring key parameters
  • Built-in overload protection circuit helps protect both the generator and connected devices

    Company engines

    «Könner & Söhnen» engines are reliable, efficient and economical, they meet world and European quality standards, including the latest EURO V emission standard. Each engine has a unique serial number and is tested for long uninterrupted operation, then disassembled and examined for defects, which allows us to control the quality of production and service.

    Built-in ATS system (automatic transfer switch)

    The ATS generator panel is equipped with: ATS connection terminals, ATS operation indicator, and ATS switch. The method of connecting the ATS generator to the electrical network is described here.

    230v or 400v

    The presented series includes models for single-phase and three-phase generators. The generator panel with ATS function has appropriate terminals for connecting the 230V and 400V networks.
    Voltage, V 400
    Maximum power, kW 5.5
    Nominal power, kW 5
    Frequency, Hz 50**
    Current strength (max), A 9.93
    Nests 1 x Schuko 230 V, 1 x CEE 400 V 16 A
    Fuel tank capacity, l 25
    Operating time at 50% load, h*** 17
    led display Voltage, frequency, operating hours counter
    Noise level Lpa/Lwa, dB 70/95
    12V outlet, A 12/8.3
    Engine model KS 390
    Engine type petrol 1-cylinder, 4-stroke, air-cooled
    Output power, HP/kW 13.0/9.56
    Fuel Petrol
    Oil tank capacity, l 1.1
    Engine capacity, cm3 389
    Voltage regulator Intelligent AVR system
    Trigger type Manual/electric/auto
    Winding type Copper
    Degree of protection IP23M
    Net dimensions (LxWxH), mm 680×545×550
    Gross dimensions (LxWxH), mm 700x545x590
    Net weight, kg 82.3
    Gross weight, kg 84.7
    SKU KS7000E-3ATS
    Barcode 4260405361632

    **In transient modes, the generator frequency can change in a short time, i.e. during normal generator operation, a deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54 Hz

    ***Fuel consumption depends on many factors, such as: load, fuel quality, season, altitude relative to sea level, technical condition of the generator.
